Lynx 5000 Series User Manual

R FR 5018 Reference Manual. Rev 1.0
Page 14 of 24

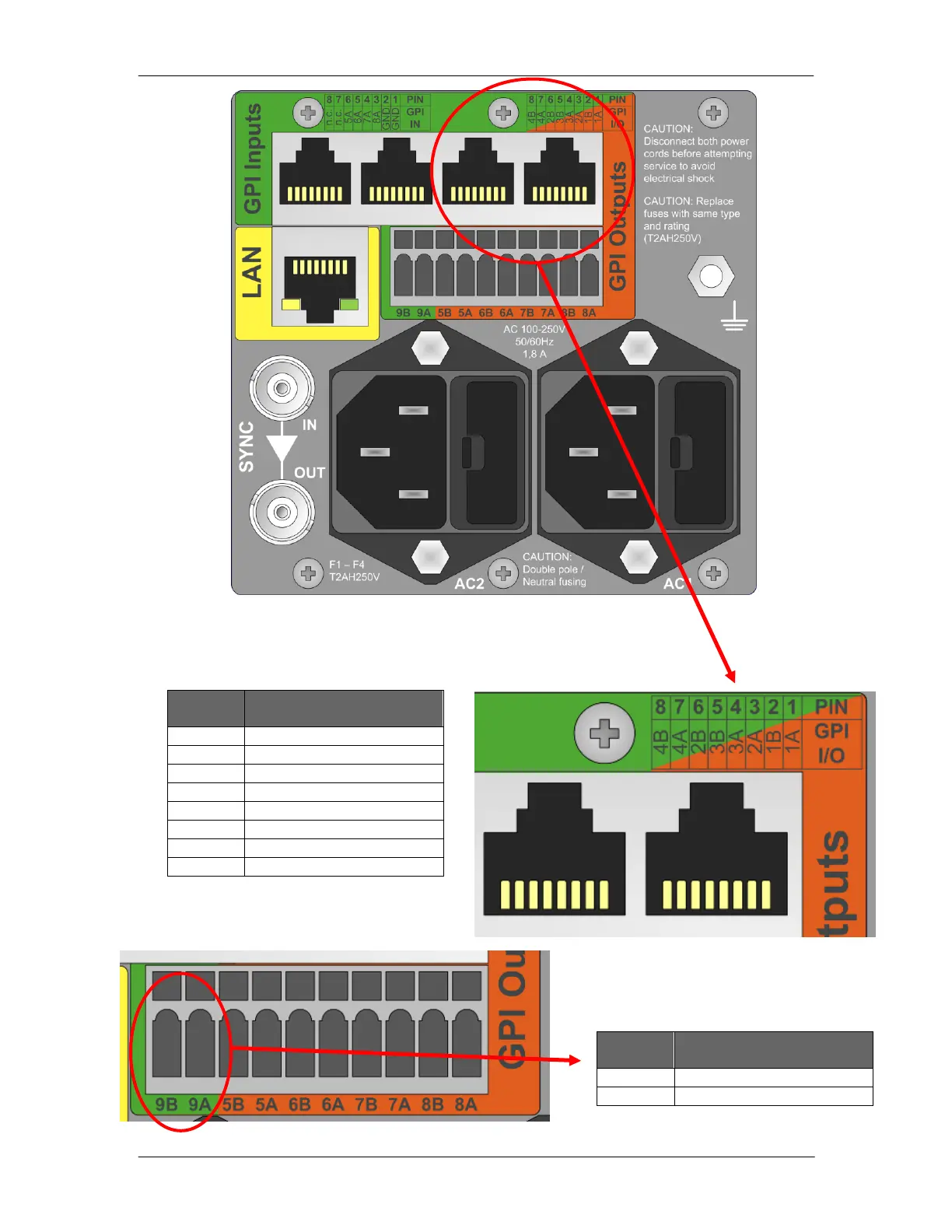

The two RJ45 connectors are looped through,
so connections can be done through the one or the other connector.
Pinning of the RJ45 connectors is according to TIA/EIA 568-B.
Pin
Number
Connection
1
GPI IN 1
2
GND
3
GPI IN 2
4
GPI IN 3
5
GND
6
GND
7
GPI IN 4
8
GND
Pin
Number
Connection
9B
GND
9A
GPI IN 9
