Lynx 5000 Series User Manual

R FR 5018 Reference Manual. Rev 1.0
Page 13 of 24

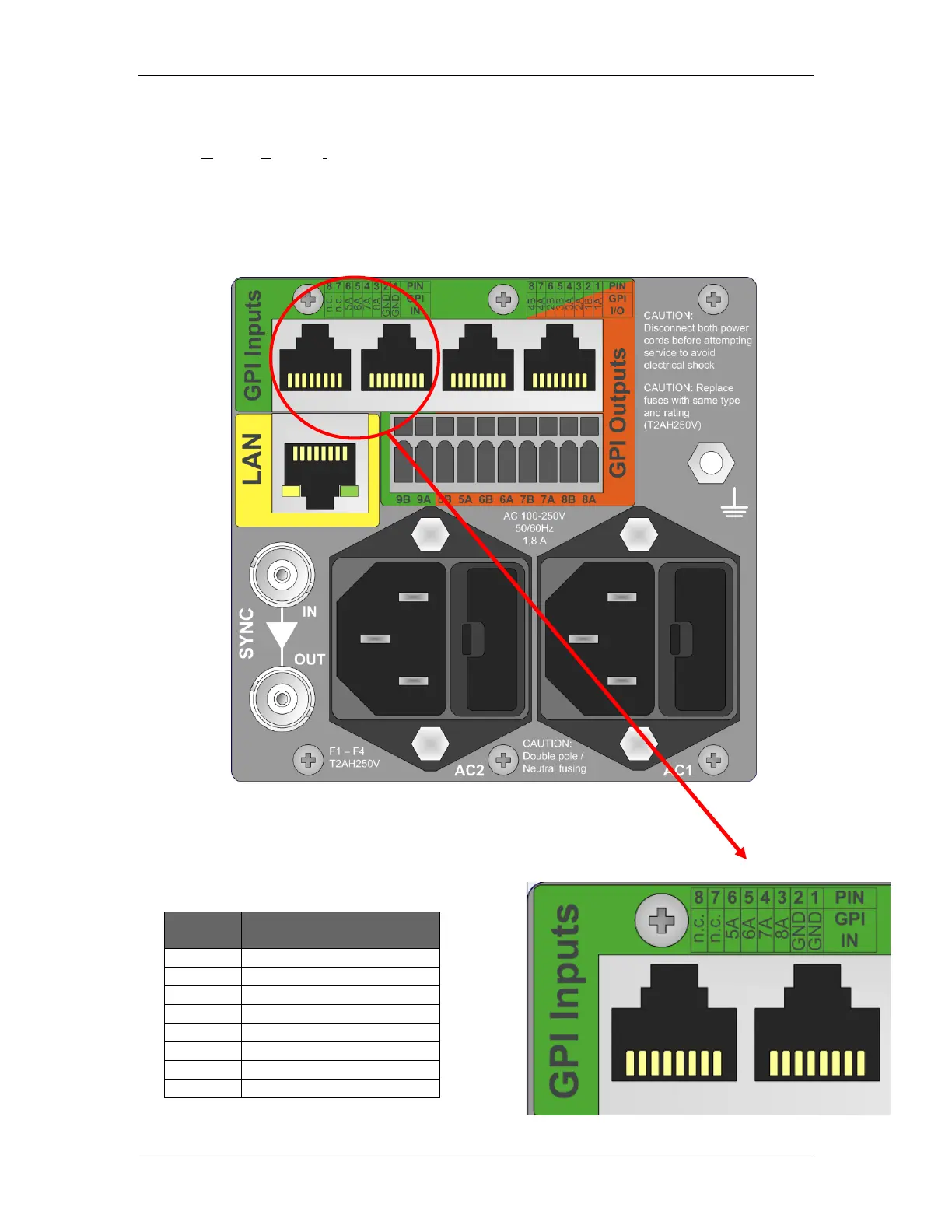

GPI Control
Through connections on the rack frame terminal panel GPI control for up to 9 GPIs
(General Purpose Interface) is provided. This feature allows control of any parameter in
an attached system with simple GPI contacts (contact closure against GND).
Note. Configuration of this function is possible through the APPolo GUI if a LYNX server
(OH_RCT5023-SERVER) is installed in the attached system.
For details of the configuration of the GPI contacts, please see the GUI section of this
manual.
The two RJ45 connectors are looped through,
so connections can be done through the one or the other connector
Pinning of the RJ45 connectors is according to TIA/EIA 568-B.
Pin
Number
Connection
1
GND
2
GND
3
GPI IN 8
4
GPI IN 7
5
GPI IN 6
6
GPI IN 5
7
n.c.
8
n.c.
