4.12 Tracking Performance
In order to achieve the best tracking performance for a long plot, we recommend some important media loading
procedures described as follows:

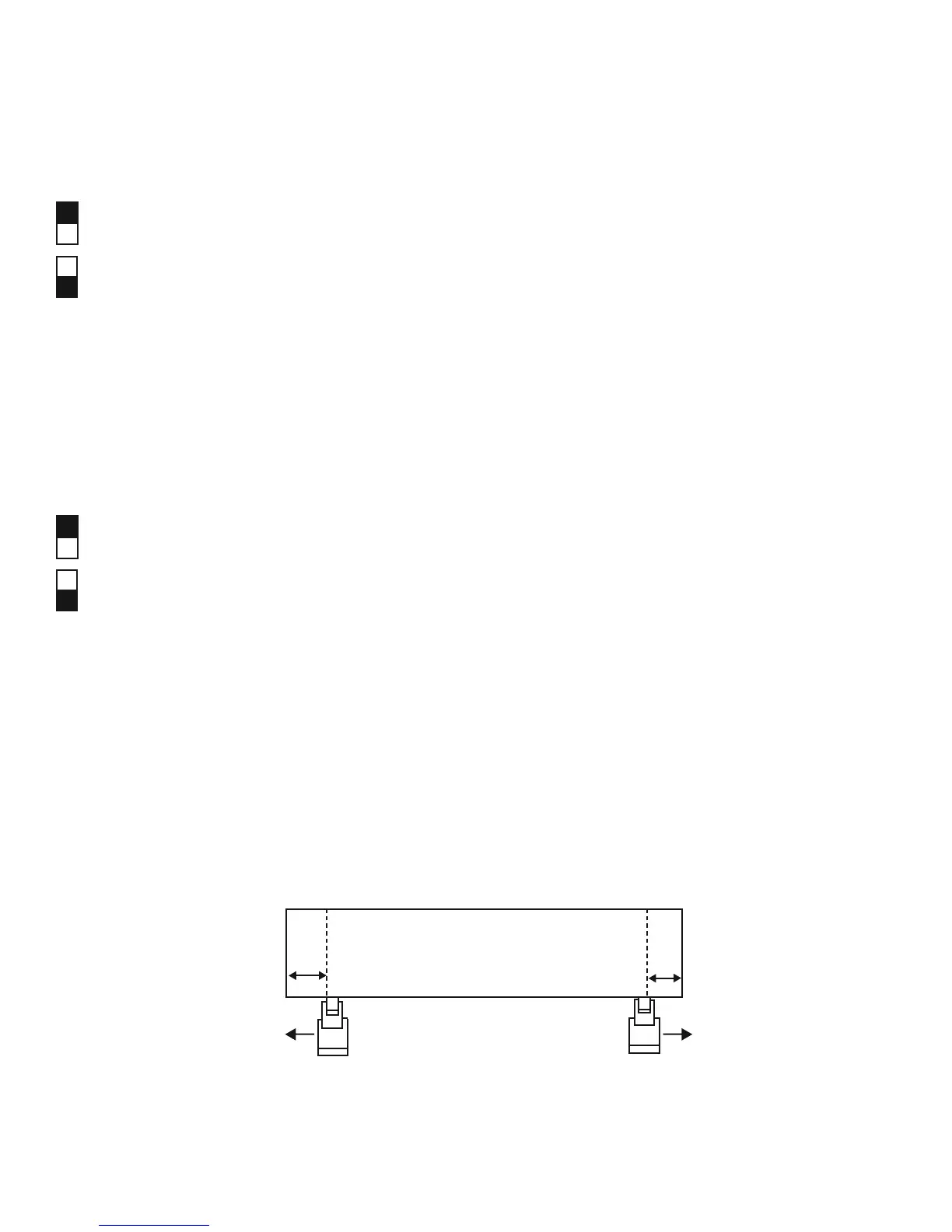

1. If the media length is less than 4 m, leave the margin of 0.5 mm~15 mm in the left and right edges of the
media (see Figure 2-14).
Pinch roller
0.5mm - 15mm
Pinch roller
0.5mm - 15mm
Figure 4-14
4. Basic Operation 4-12
SW-7: AUTO UNROLL
Unroll heavy media at least 50 cm when the next point of movement is located beyond the unrolled position. If
the media type is single, this function is disabled.
SW-8: MEDIA TYPE
Set the type of the media you are using. When using a piece or single sheet of media, set it to “ON”; and set it to
“OFF” when using a roll media.
Disable the auto unroll
Enable the auto unroll
Single sheet of media is using.
A roll of media is using.
