Installation
•
It is advised that an experience alarm installer install and program the panel. It is required to ensure proper
performance and use of the full functionality.
• The wiring should be done only when the panel is power down.
• Do not rout any eld wiring over the circuit board.
• For Dry/Indoor use only.
Mounting Instructions
Choose Location
• Mount the panel in an indoor dry area.
• Do not choose location that is below ground level, as this can impair wireless reception.
• Do not choose location that can be easily viewed from outside the premises.
The Control Panel should be mounted on the wall in an easy location for the user to operate with system.
1. Remove the locking screws from the top of the Control Panel case.

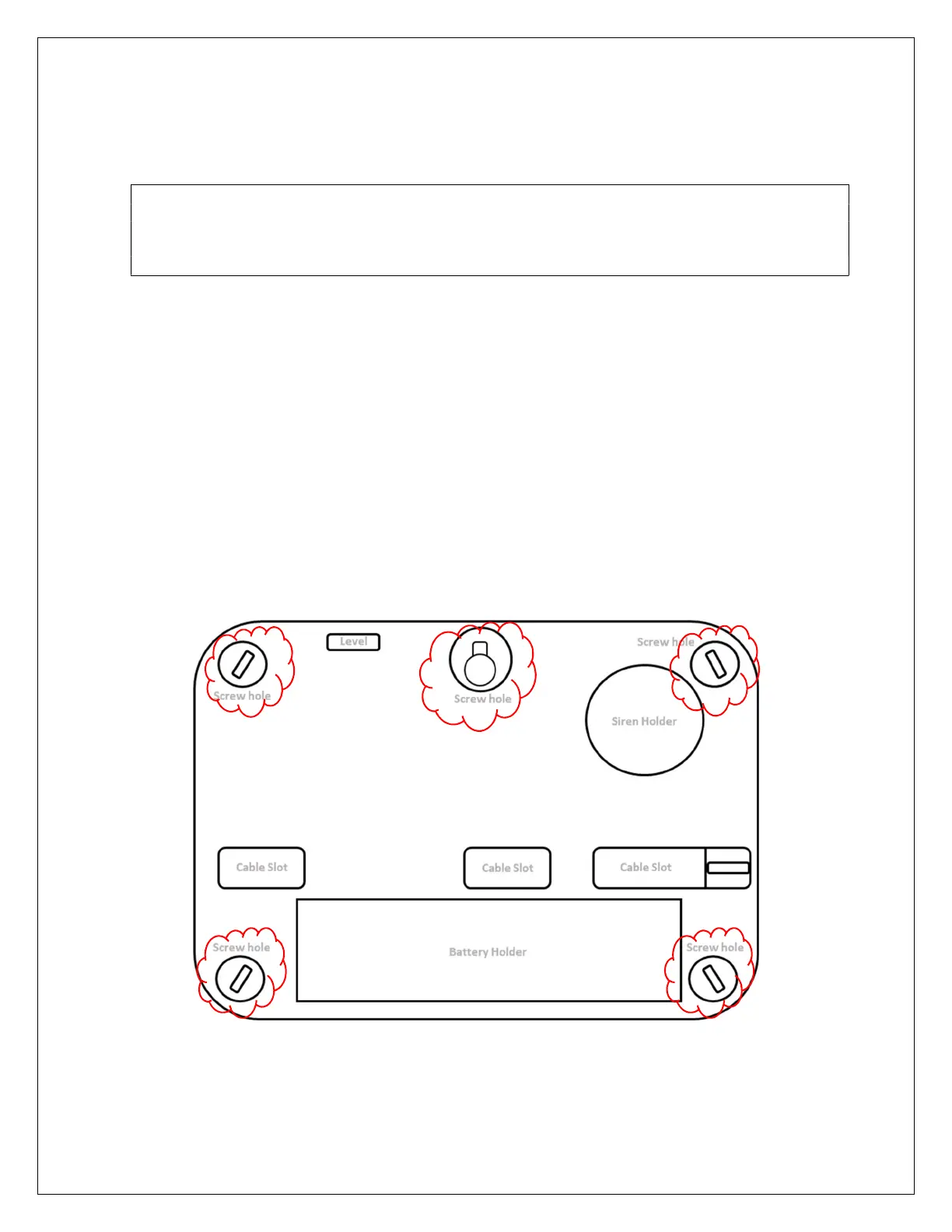

2. Use the back side of the enclosure as a template and mark the holes on the mo
unting surface.
Pre-start the mounting screw (not supplied) for the middle hole. Slide the box onto this screw.
Use the build-in level to adjust the enclosure. Tighten the screw. Install the rest of the screws (not
supplied).
To Next Page
