M2M RControl-LA User Manual

8102 secivreSM2M © 9

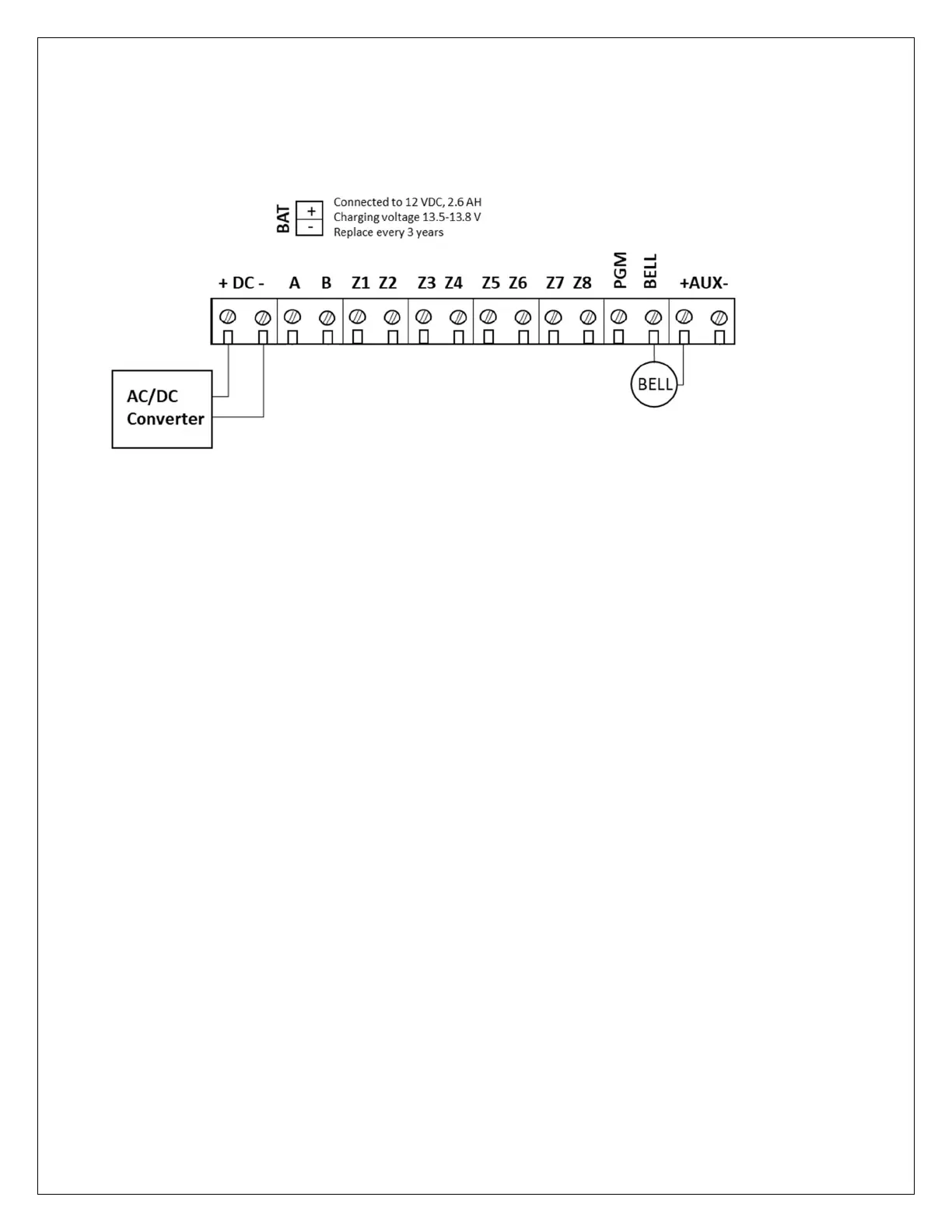

Wiring Instructions
Power Supply Module
•
The L and N terminals should be connected to the powerline (220V)
• The -V output should be connected to the (-) of the alarm panel
• The +V output should be connected to the (+) of the alarm panel
Battery
Plug the battery connector into the connector on the control panel’s circuit board. Plug the red cable to
the (+) of the battery and the blue one to the (-) of the battery. Ensure the battery is connected to correct
polarity. Failure to c
omply with this may result in battery rupture and/or re hazard.
Siren
The siren should be connected to AUX (+) and BELL (-). The programmable output for the siren BELL (-)
is an open collector 200mA.

M2M RControl-LA Specifications

General

Brand	M2M
Model	RControl-LA
Category	Security System
Language	English
