Getting Started...
Before you start
> Remove the cover and spacer
plate from the bolts (19) (the
spacer plate is not to be re-
tted)(Fig. 3).
> Place the slot in the guide
bar (4) over the bolts (19).
Push the guide bar (4) to the
left towards the drive sprocket
(22) (behind the clutch (21)
(Fig. 4).
> Spread the saw chain (3) over
the sprocket (22) behind the
clutch (21) and t around the
guide bar (4) with the cutting
edges of the chain pointing in
the rotational direction (Fig. 5).
> Slide the chain into the groove
around the guide bar (Fig. 6).
WARNING! The direction of the saw chain ‘cutters’ must
be as indicated by the symbol and arrow on the guide bar!
5
40cm

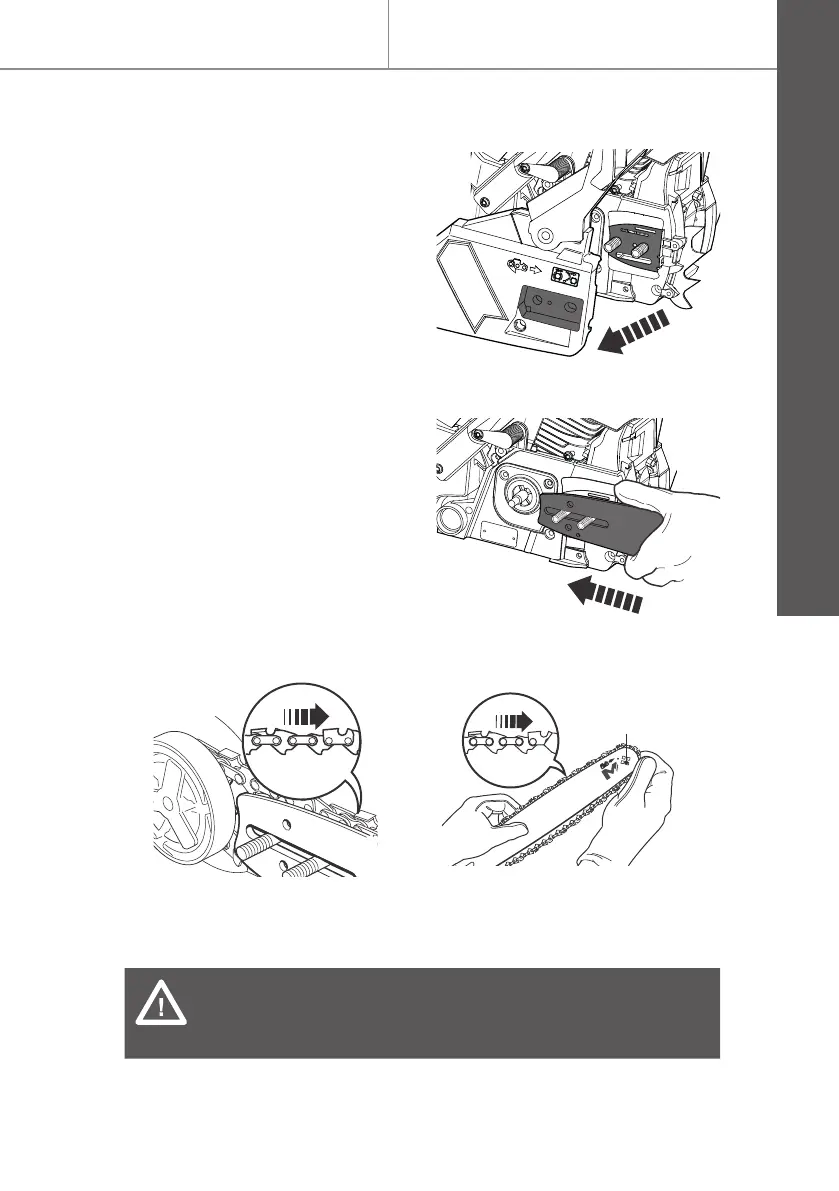

Fig. 3
