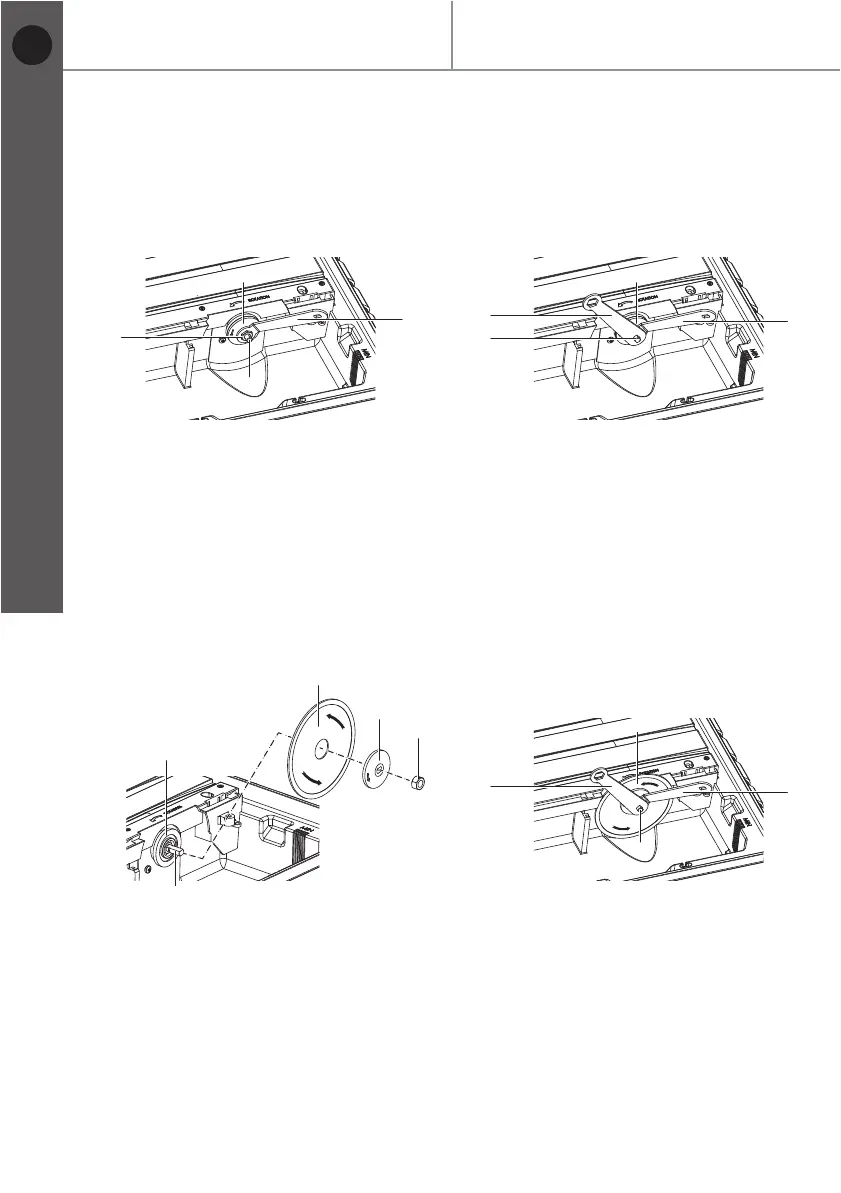

Fig. 4 Fig. 5
Fig. 7Fig. 6
> Place cutting disc (15) on inner flange (25).
> Attach the outer flange (24).
> Screw arbor nut (21) onto motor shaft (22) clockwise.
> Attach the angle disc spanner (20) to the arbor nut (21).
> Lock motor shaft (22) to prevent turning using straight disc spanner (23).
> Tighten arbor nut (21) clockwise using angle disc spanner (20).
> Re-attach the lower protective guard (6) and tighten screw (19).
> Replace the 45° vertical fence (1).
> Attach the anlge disc spanner (20) (supplied) to the arbor nut (21).
> Lock motor shaft (22) to prevent turning using straigth disc spanner (23) (supplied).
> Turn the arbor nut (21) anti-clockwise.
> Remove the arbor nut (21) and outer flange (24).
14
MTC500 by MacAllister
Before you start
Getting started...
20
22
20
20
24
21
24
15
15
25
22
22
24
21
23
23
22
EN
