MacAllister MTC500 - Fitting the Cutting Disc

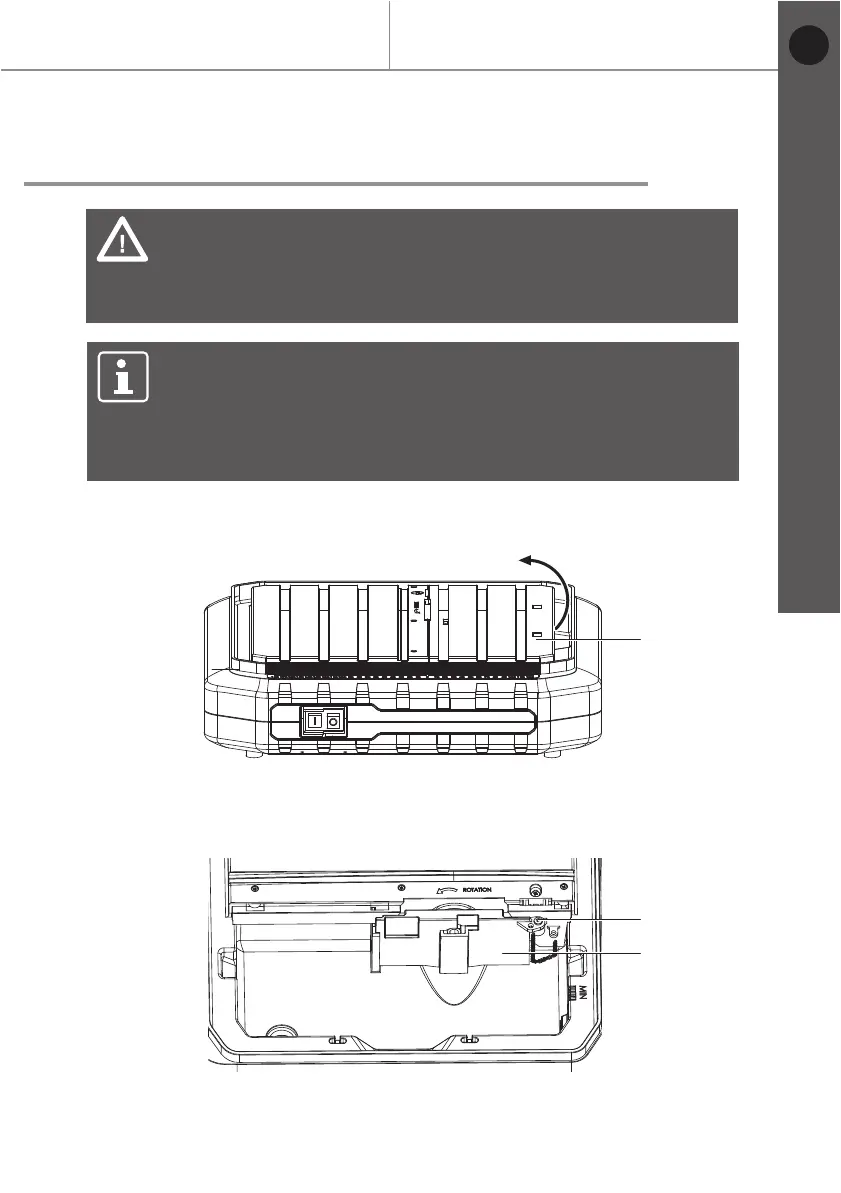

Fig. 2
Fig. 3
Before you start
> Unplug the tile cutter from the mains supply.
> Raise the 45° Vertical fence (1) approx. 45° and remove.
> Loosen screw (19) and pull off lower protective guard (6).
MTC500 by MacAllister
Getting started...
13
Fitting the cutting disc
1
19
6
WARNING: Product damage!
Be sure to observe the rotational direction of the cutting disc when
fitting! Be sure to observe the free-wheeling of the cutting disc when
fitting!
NOTE: When fitting make sure that the cutting disc is placed correctly
on the inner flange. The inner flange can be moved freely on the
motor shaft and has a section for holding the internal hole of the
cutting disc. The hole of the outer flange is not round and is used
for the interlocking connection with the motor shaft.
EN
