MacAllister MTC500 - Making a Mitre or Diagonal Cut; Cutting an Angle or Bevel

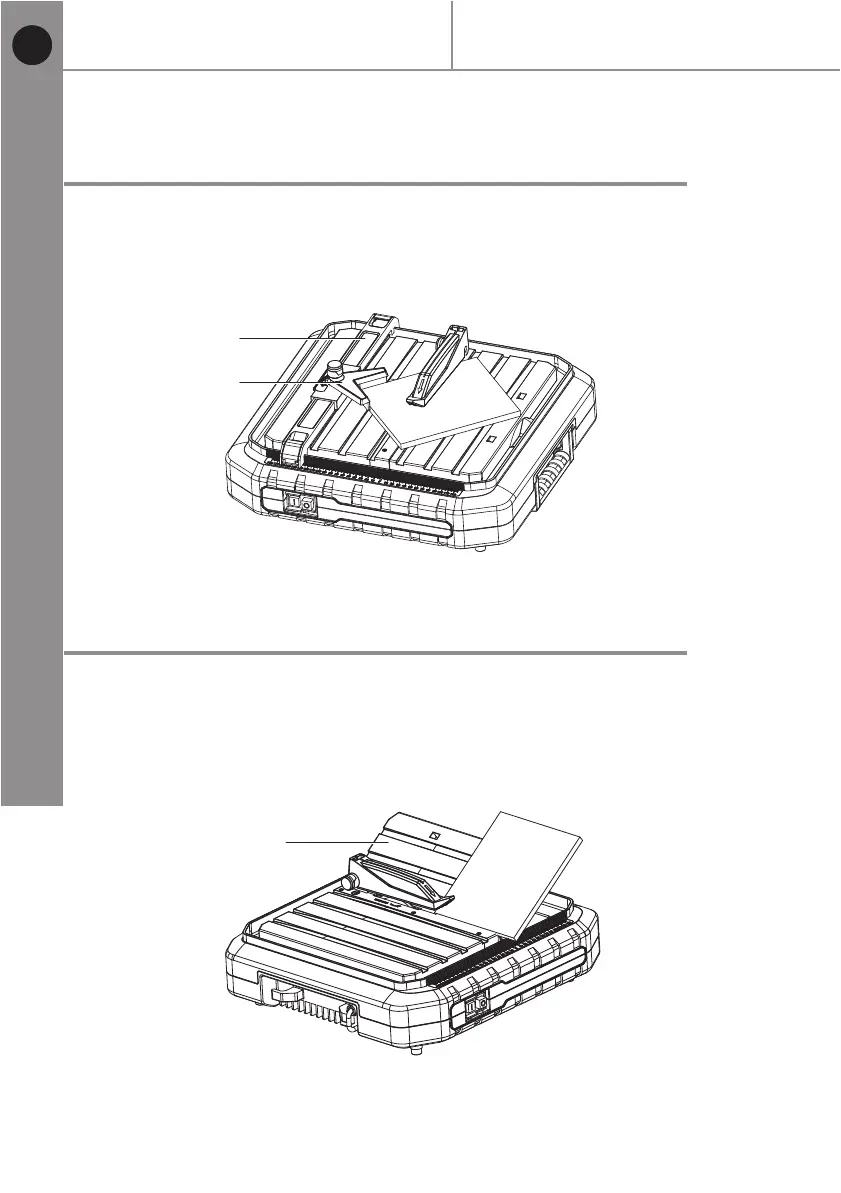

Fig. 19
Fig. 20
MTC500 by MacAllister
In more detail…
26
Cutting an angle or bevel
Use the 45° vertical fence (1) if you wish to cut an angle or bevel on the tile edge.
Raise the 45° vertical fence (1) approx. 45°.
Fold out the holder and position in the locators. Then make the cut as before.
Internal or external bevel cuts can be made by turning the tile face up or down
(internal – eg. wall corner; external – eg. window reveal).
Making a mitre or diagonal cut
Follow the same procedure for a straight cut but use the mitre cutting guide (13) in
conjunction with the parallel cutting guide (12). The mitre cutting guide (13) simply
clips onto the parallel cutting guide (12).
Make sure that the tile is held firmly in the guide before making the cut.
Product functions
13
1
12
EN
