Care and maintenance
MTC500 by MacAllister
29
In more detail…

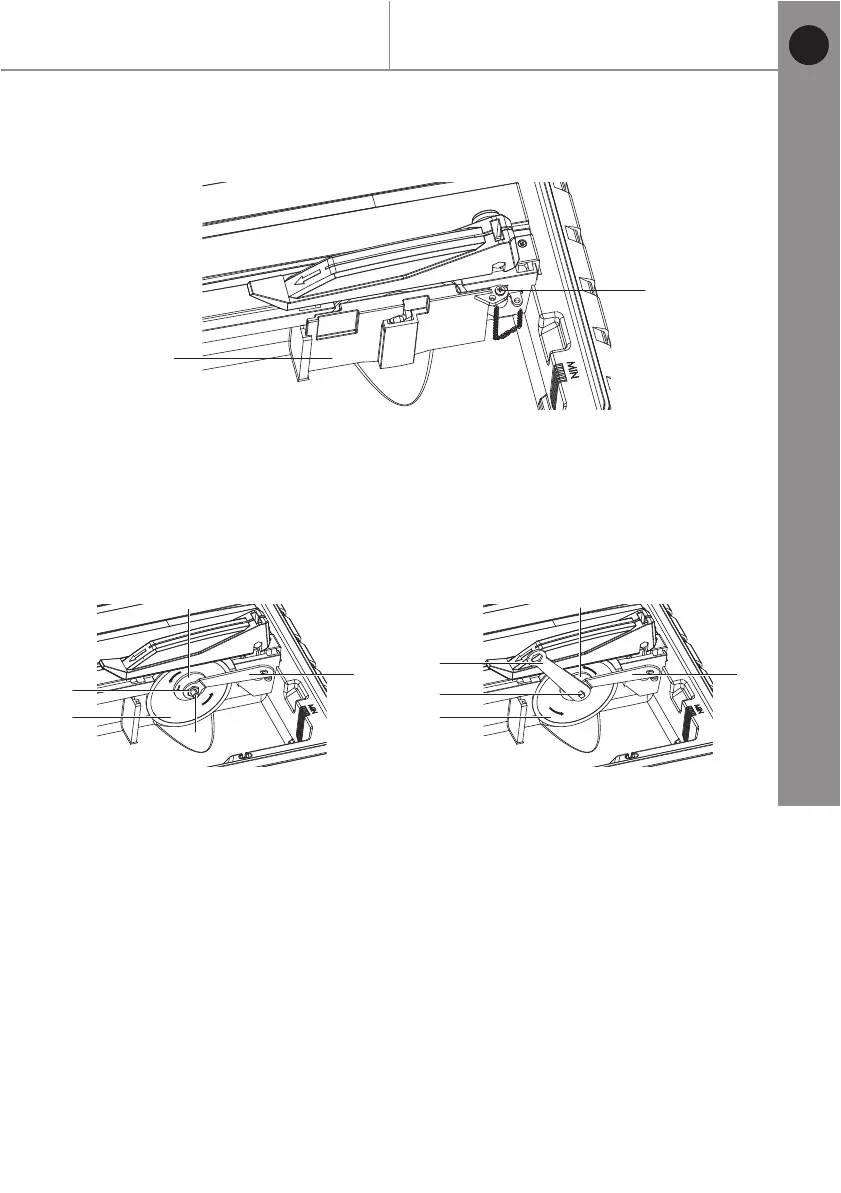

> Loosen screw (19) and pull off lower protective guard (6).
Fitting the cutting disc: (Refer to “Fitting the cutting disc” section on Page. 13-14)
19
6
> Attach the anlge disc spanner (20) (supplied) to the arbor nut (21).
> Lock motor shaft (22) to prevent turning using straigth disc spanner (23) (supplied).
> Turn the arbor nut (21) anti-clockwise.
> Remove the arbor nut (21), outer flange (24) and cutting disc (15).
> Thoroughly clean outer flange, inner flange and motor shaft.
20
22
20
24
24
21
15
23
22
15
