21
ATTACHING & DETACHING

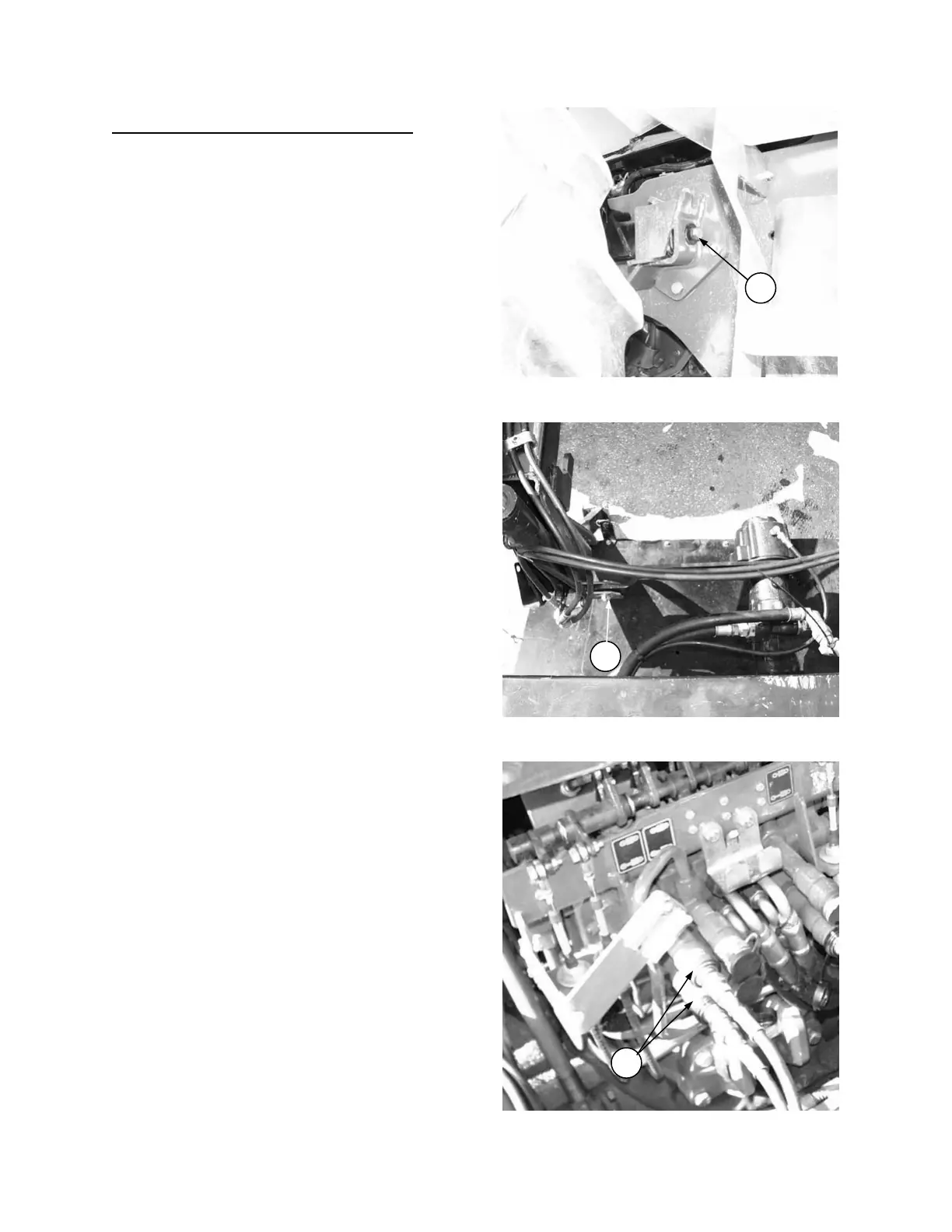

DETACHING ADAPTER FROM TRACTOR
6. Remove bolt (E) from frame, both sides and
back partially away from adapter (enough
room to stand between tractor and adapter).
Stop engine and remove key.
7. For 9030 Tractor & TV140 Tractor with
MacDon Header Drive Pump: Disconnect
pump from tractor PTO and store on torque
arm support (K).
8. Back away from adapter until tractor is just
clear of 4 x 4 tubes. Be aware of header lift
hoses, which are still connected. Stop engine
and remove key.
9. Disconnect header lift hoses at (B). Plug or
cap all couplers to prevent hydraulic system
contamination.
DETACH LIFT HOSES
B
MacDon PUMP STORAGE
K
DETACH 4 X 4’S FROM TRACTOR
E
To Next Page
