MacDon 922 - HEADER CONTROLS; HEADER LIFT CYLINDER STOPS

Form # 46620 Issue 11/06
21
OPERATION
HEADER CONTROLS
CAUTION: Be sure all bystanders are
clear of machine before starting
windrower or engaging any header
drives.
See the Windrower Tractor Operator's Manual for
identification of in-cab controls for:
• Header Drive Clutch
• Header Height
• Ground Speed
• Reel Speed
• Hydraulic Conditioner Roll Opener (Option)

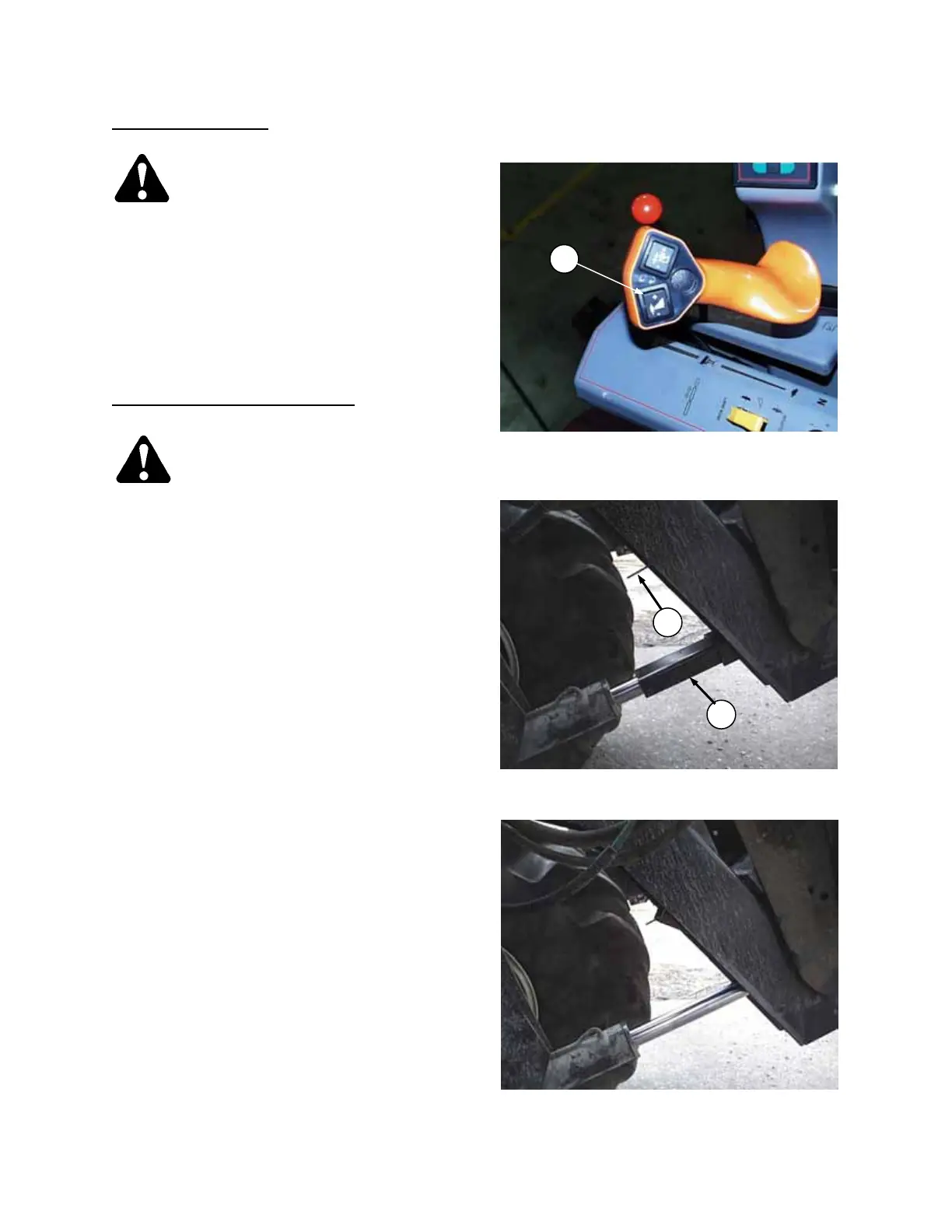

HEADER LIFT CYLINDER STOPS
DANGER: To avoid bodily injury or
death from fall of raised header,
always engage cylinder stops before
going under header for any reason.
Cylinder stops are located on both header lift
cylinders on windrower.
To engage cylinder stops:
1. Press top of header height switch (A) to raise
header to maximum height.
2. Lift retainer (B) up to release cylinder stop (C).
Lower stop onto cylinder.
3. To store, push up on stop (C) until retainer
locks in storage position.
LIFT
C
YLINDER
S
T
O
P - EN
G
A
G
ED
C
B
LIFT CYLINDER STOP - STORAGE
A
HEADER HEIGHT SWITCH
