OPERATION
AUGER MOUNTED CROP DEFLECTORS/STRIPPERS & STRIPPER BAR EXTENSIONS:
912 & 922 HEADERS

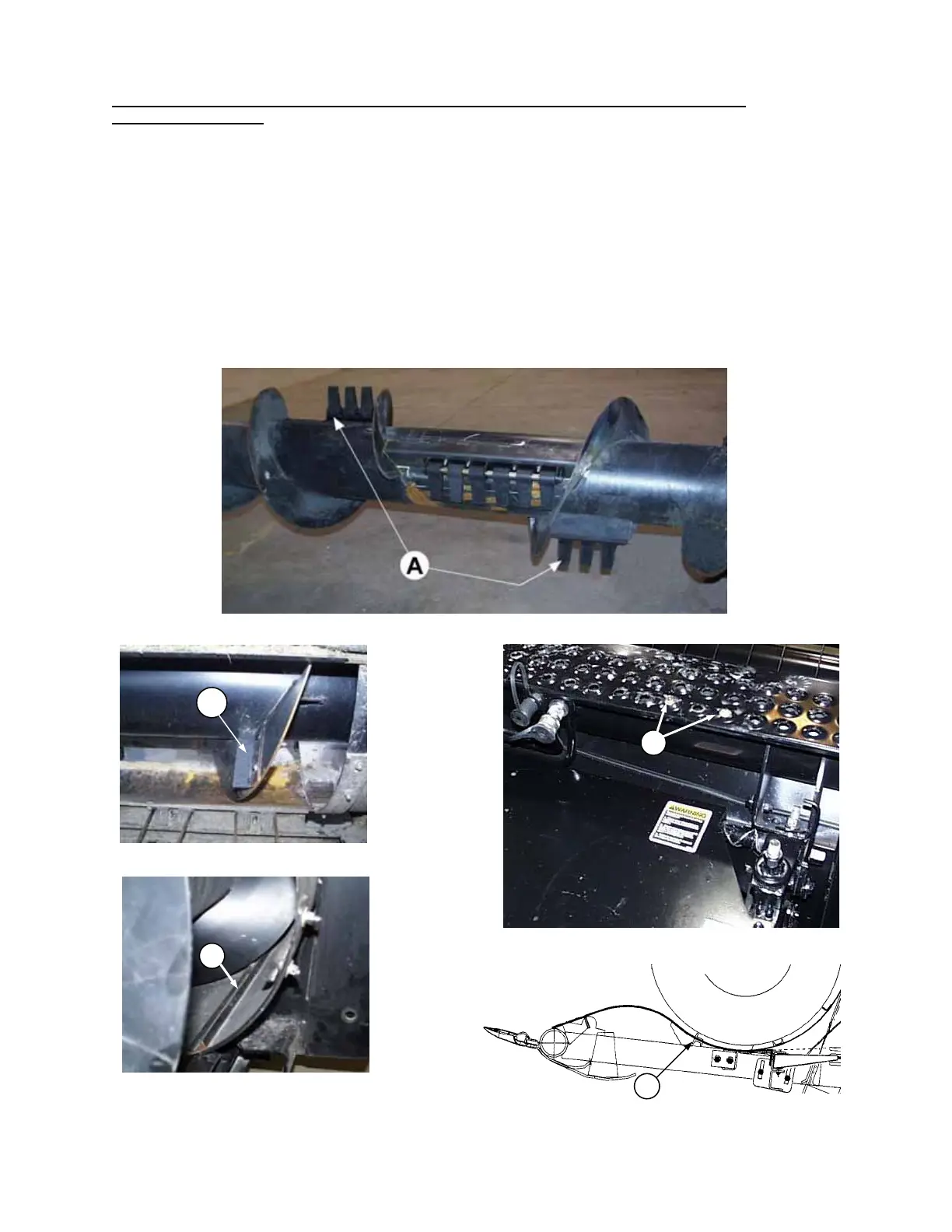

Four rubber finger assemblies are mounted to the auger to direct crop rearward to the hay conditioner such
that material is evenly distributed across the full width of the conditioner. If too much “end feeding” of
conditioner rolls is occurring, remove two outboard rubber finger assemblies (A).
If too much “Center Feeding” of conditioner rolls is occurring, the following may be necessary:
1. Install flighting-mounted deflectors (B). Deflectors are stored under platform at (C). Depending on crop
conditions, install one or two deflectors at each side of delivery opening.
2. Replace full-length front “L” angle strippers with 1/2 length front “C” channel strippers. These 1/2 length
strippers are stored on underside of pan at (D). On-header storage of full length front strippers is not
provided.
3. Remove center stripper extensions (E) on center stripper bars at each side of delivery opening.
E
CENTER STRIPPER EXTENSIONS
AUGER FLIGHTING DEFLECTOR
B
AUGER MOUNTED CROP DEFLECTORS
DEFLECTOR STORAGE
C
FRONT STRIPPER – SHORTER “C” CHANNEL
STRIPPER STORAGE
D
