Form # 46620 Issue 01/06
76
UNLOADING & ASSEMBLY
OPTIOAL HYDRAULIC CONDITIONER ROLL OPENER INSTALLATION INSTRUCTIONS
NOTE: If Hydraulic Roll Opener Kit is used in
combination with the Double Windrow Attachment,
install Hydraulic Reel Fore-Aft Package (B2960
Base Kit plus B2961 Fore-Aft Completion Kit) onto
tractor to operate Double Windrow Attachment
delivery deck
INSTALLATION:

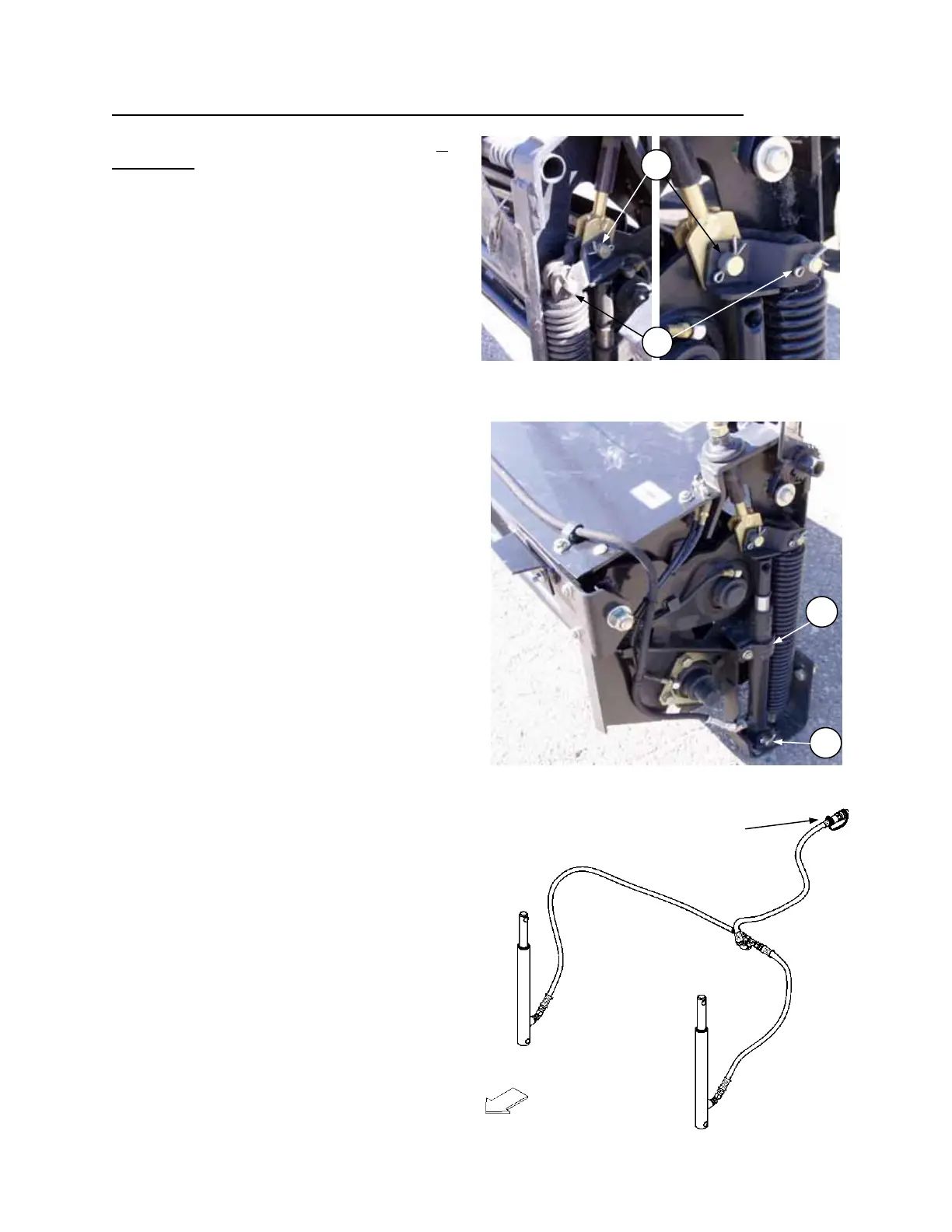

1. Remove existing spacer washers at (A) and
(B) and install top roll brackets using existing
clevis and cotter pins. Left and right brackets
are different. Position as shown.
2. Attach cylinders at sides of conditioner frame.
Secure barrel end to clevis at bottom frame
support with 5/8 x 2.28 clevis pin (C) and cotter
pin. Install cylinder retainer brackets (D) with
3/8 x 1 carriage bolt and smooth flange lock nut.
3. Lay hose and fitting assembly on conditioner
as shown. Connect hoses to cylinders with 45°
fittings pointing up and back as shown.
INSTALL CYLINDERS
C
D
DIRECTION
OF TRAVEL
TO TRACTOR
REEL LIFT
CIRCUIT
LEFT RIGHT
INSTALL TOP ROLL BRACKETS
A
B
