ASSEMBLY
Two-Way Radio Installation
At the rear of the side console (D), you will find two
auxiliary power points provided for accessories
such as a two-way radio.
To mount antenna to cab roof:
• Remove console lower panel (to right of
operator's seat) and route antenna cable (E)
from the radio into the console.
• Remove instrument panel on cab right post.
Follow cab wiring harness into headliner.
• Remove wiper motor cover and/or right radio
speaker for access to inside of headliner.
Tool Box
Hang the tool box on frame bracket as shown.

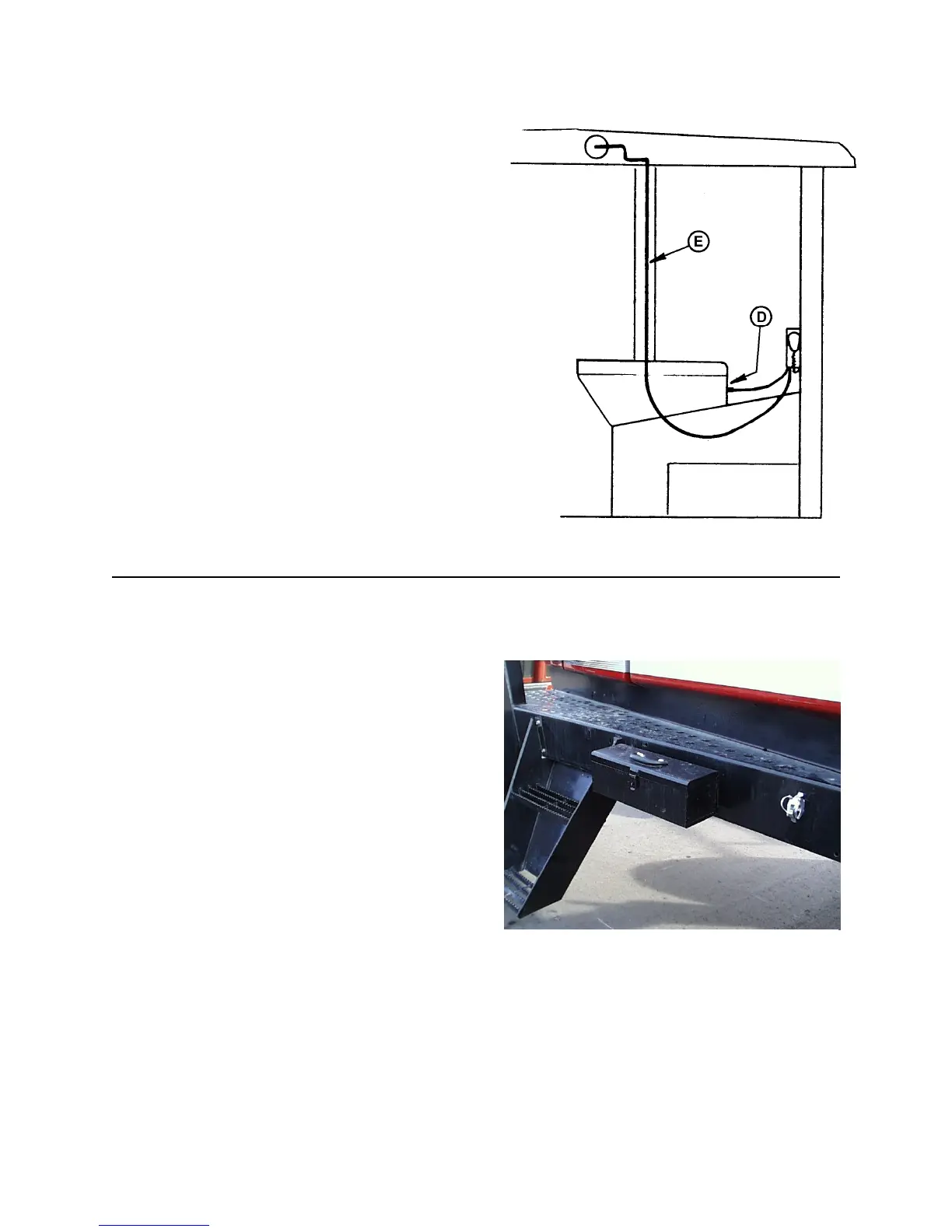

TWO-WAY RADIO ANTENNA ROUTING
ATTACH TOOL BOX
