Form # 46584 Issue 11/06 Web Rev_01
88
MAINTENANCE/SERVICE
Electrical System
CIRCUIT BREAKERS

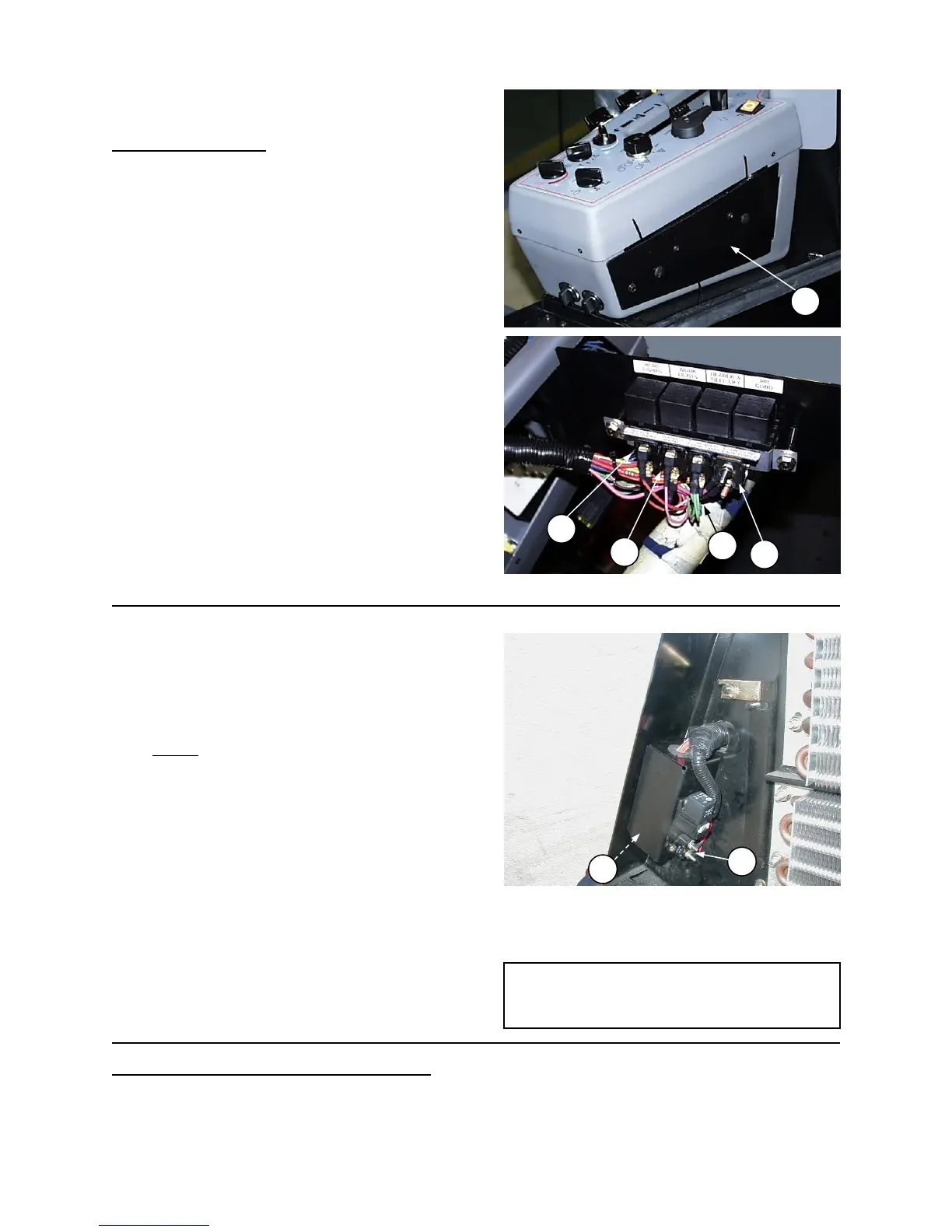

CHECKING IN-CAB CIRCUIT BREAKERS
For access to breakers, remove panel (G) on
window side of right hand side console.
These breakers will reset automatically after
approximately one minute.
See your dealer if circuits do not operate correctly.
(A) - Wiper, Interior Light, Radio Memory, Auxiliary
Power Points - 6 amp
(B) - Instruments, Radio, Screen Motors - 6 amp
(C) - Header Controls, Operator Presence System,
2-Speed Switch - 10 amp
(D) - Air Conditioning, Seat Suspension Switch -
25 amp
CHECKING 50 AMP CIRCUIT BREAKERS
The 50 amp circuit breakers are located at the left
radiator mount.
NOTE: Circuit breaker (E) provides power for all
lights except
rear work lights, which are powered
with other electrical functions through breaker (F).
If none of the lights will operate, check if re-set
button is popped out on lights circuit breaker (E).
(Button is located on bottom of breaker mounted
inside of shield and can be reached by hand)
If none of the electrical functions other than lights
will operate, check if re-set button is popped out on
bottom of circuit breaker (F).
If re-set button is out, the breaker has opened.
Push the button in to reset circuit breaker.
Breakers should not open regularly under normal
operating conditions. If repeated breaker opening
occurs, see your dealer.
RADIO & TWO-WAY RADIO INSTALLATION
Instructions for installation of a radio and two-way
radio are provided in Assembly section.
G
D
C
B
A
IN-CAB CIRCUIT BREAKERS
NOTE: For electrical schematics, see
“SCHEMATICS” section at back of this
book.
F
E
50 AMP CIRCUIT BREAKERS
