Electrical System
LIGHTS AND BULBS
ADJUSTABLE HEADLIGHTS
The two front headlights can be adjusted up or down
and to the right or left with adjustment screws (A).
Adjust for maximum illumination while ensuring
oncoming traffic cannot be blinded by the lights. The
recommended setting is:
• Light beams laterally centered on the “direction of
travel” line from the headlights (i.e. not skewed left
or right).
• Upper limit of the beam not higher than 105 inches
(266 cm) above ground at a distance of 25 ft. (7.5
m) from the headlight
SERVICING LIGHT BULBS
1. If all lights fail at the same time, check if re-set button is popped out on the lights circuit breaker at the
engine. If so, push it in. See "Circuit Breakers" in this section.
2. If a single light fails, bulb may be burned out, or it may have a faulty connection.
3. If problem is other than circuit breaker, bulb, or connection, see your Windrower dealer.

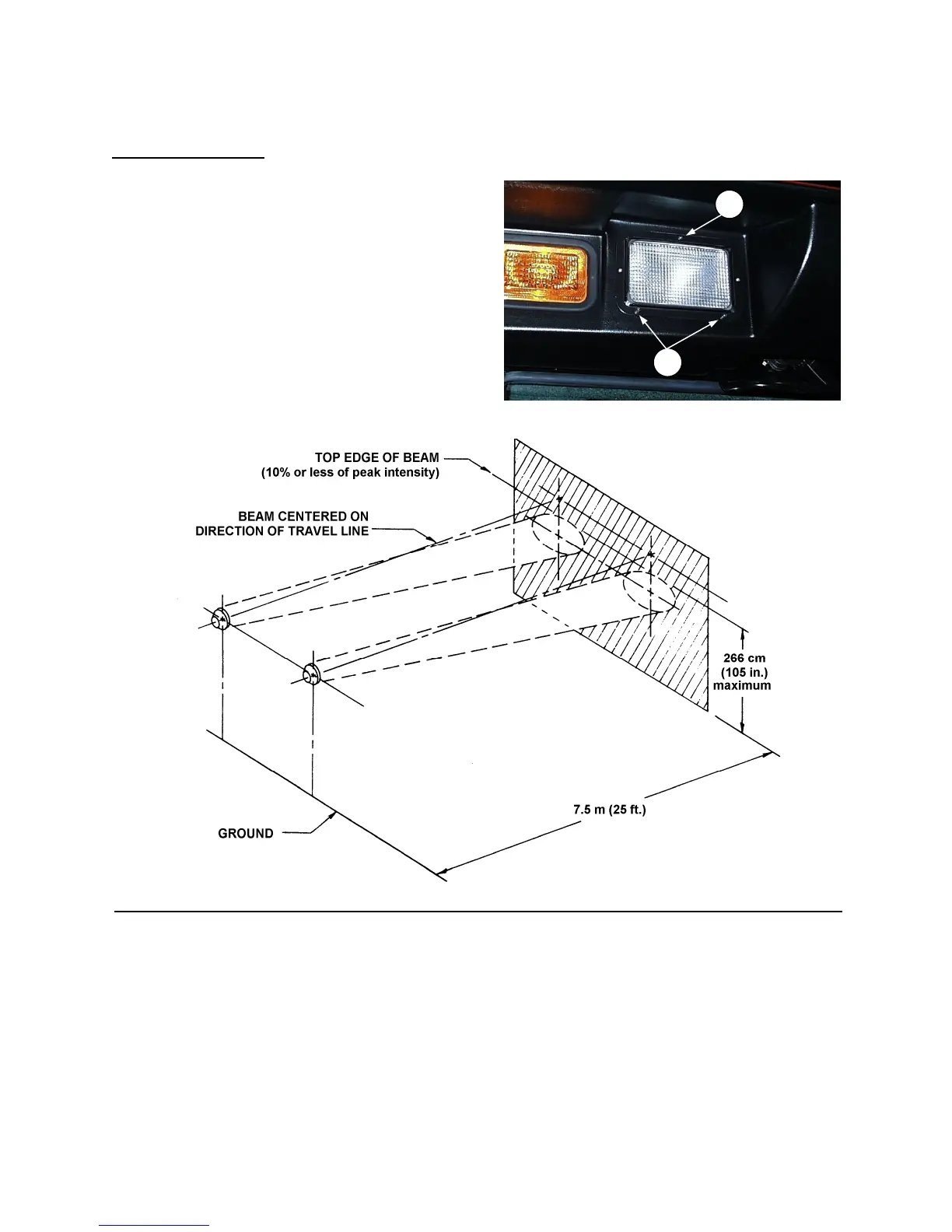

HEADLIGHT ADJUSTMENT
A
A
