MAINTENANCE/SERVICE
Electrical System
LIGHTS AND BULBS (continued)

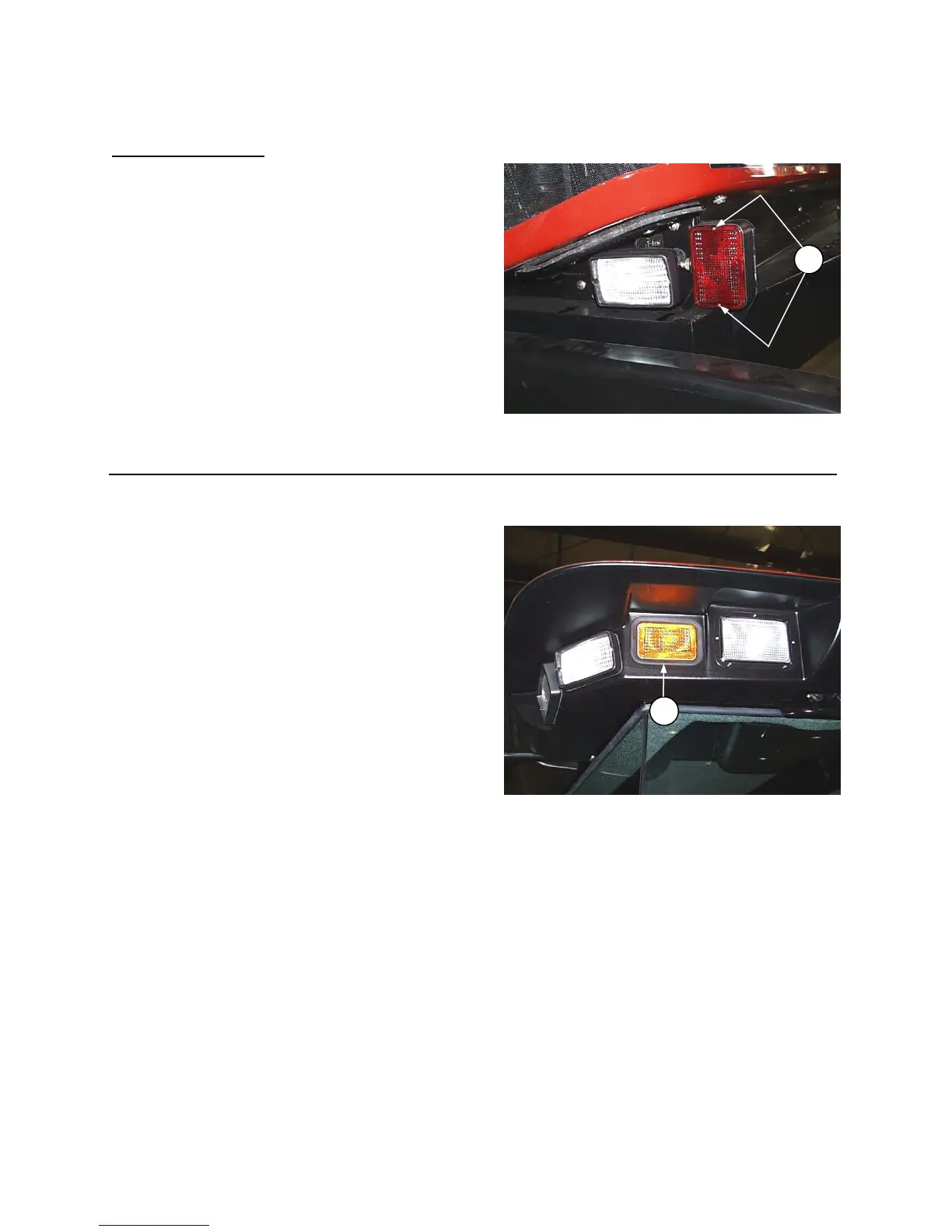

REPLACING RED TAIL LIGHT BULBS
1. Remove two screws (A). Remove plastic lens.
2. Replace bulb and reinstall plastic lens.
NOTE: Bulb trade #1157.
REPLACING AMBER LIGHT BULBS
1. Remove light (B) from rubber bezel.
2. Replace bulb and reinstall light.
NOTE: Bulb trade #1156.
IMPORTANT: For proper lighting pattern, be sure
lights are installed right side up.
A
RED LIGHTS
B
AMBER LIGHTS
