UNLOADING AND ASSEMBLY
Form 169078 Revision C

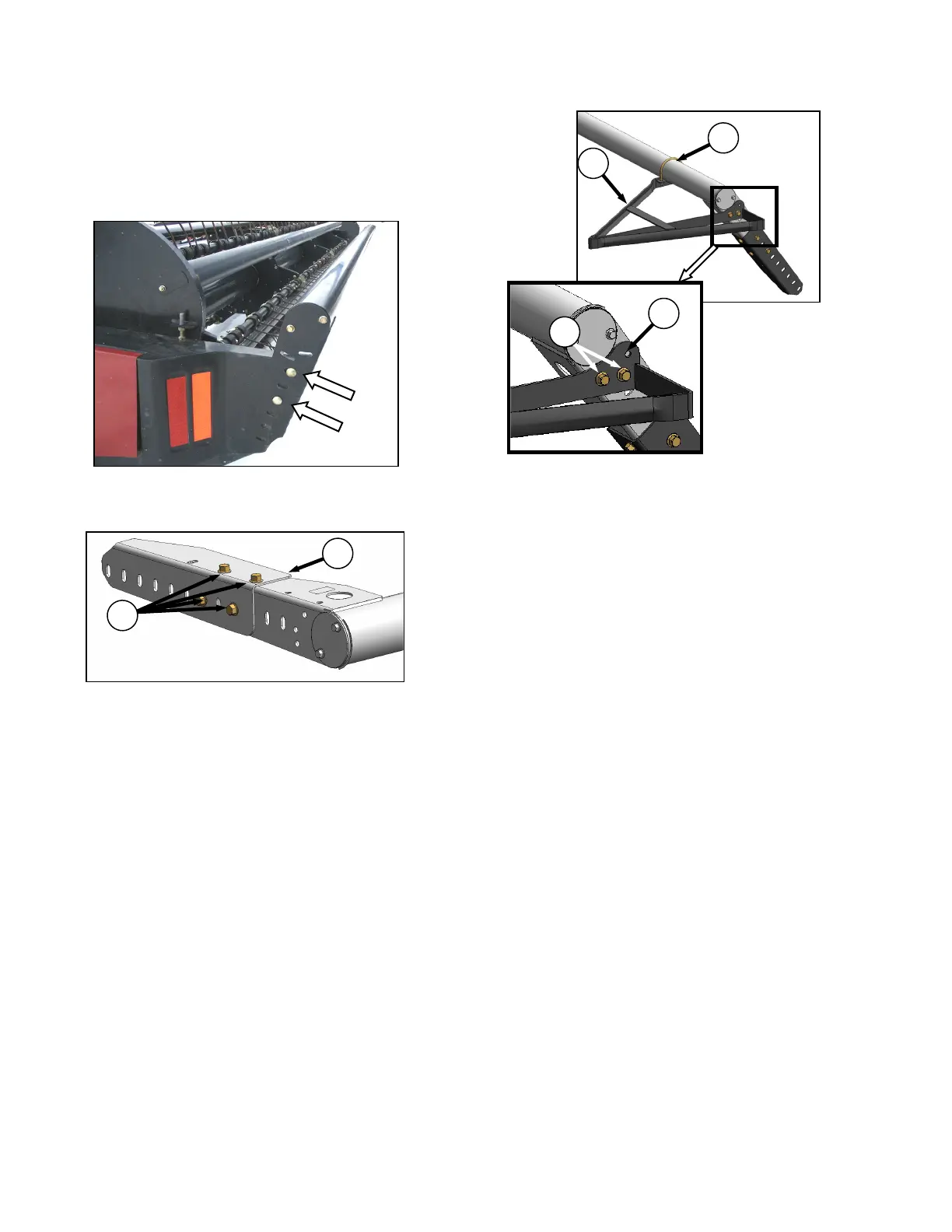

STEP 7. INSTALL TALL CROP
DIVIDER
If kit is not supplied, proceed to STEP 8. ADJUST
LEAN BAR. Otherwise proceed as follows:
a. Remove hardware on both sides of lean bar,
and remove lean bar.
b. Attach extensions (C) to lean bar with four bolts
(D) and nuts provided.
c. Re-attach lean bar to header with existing
hardware at desired location. Tighten bolts.
d. Attach LH divider assembly (E) to LH end of
lean bar with two bolts (F) and nuts provided.
The divider may be positioned as shown, or
using the optional mounting hole (G).
e. Install U-bolt (H), and tighten all bolts.
f. Repeat for RH divider.
