UNLOADING AND ASSEMBLY
Form 169078 Revision C

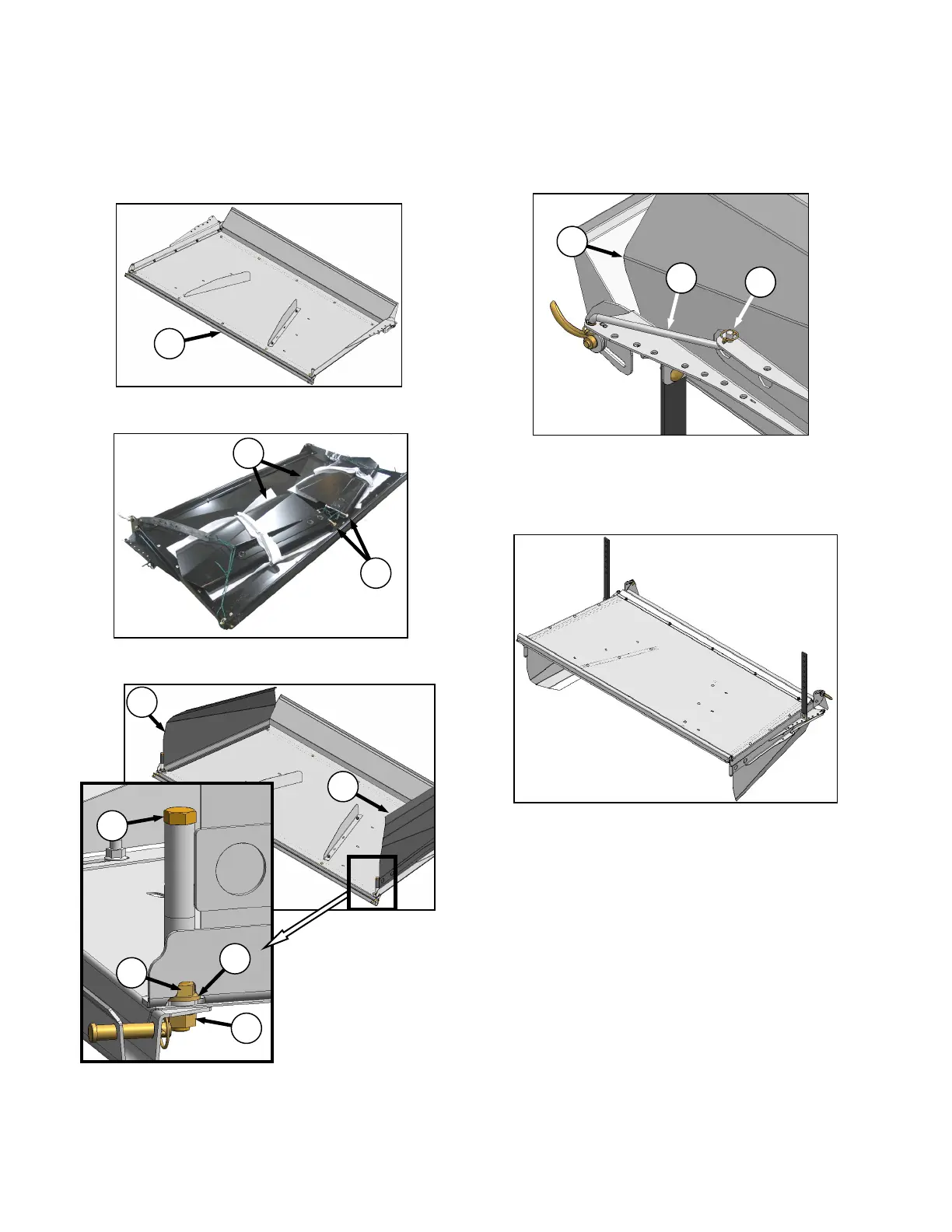

STEP 11. ASSEMBLE FORMING
SHIELD
a. Unpack and remove shipping material.
b. Lay cover (A) upside down on a flat surface.
c. Remove bolts (B) from side deflectors (C).
d. Assemble side deflectors (C) to cover (A) with
bolts (B), jam-nut (D), washer (E), and nut (F)
from previous step.
e. Tighten flange nut (F) enough to hold deflectors
(C) in position, but still allow deflectors to move.
f. Tighten jam nut (D) against cover while holding
bolt (B).
g. Remove lynch pin (G) from adjuster rod (H) and
locate rod in hole in side deflector (C). Secure
with lynch pin (G).
h. Repeat for other deflector.
i. Invert forming shield to installation position as
shown.
