UNLOADING AND ASSEMBLY
Form 169078 Revision C

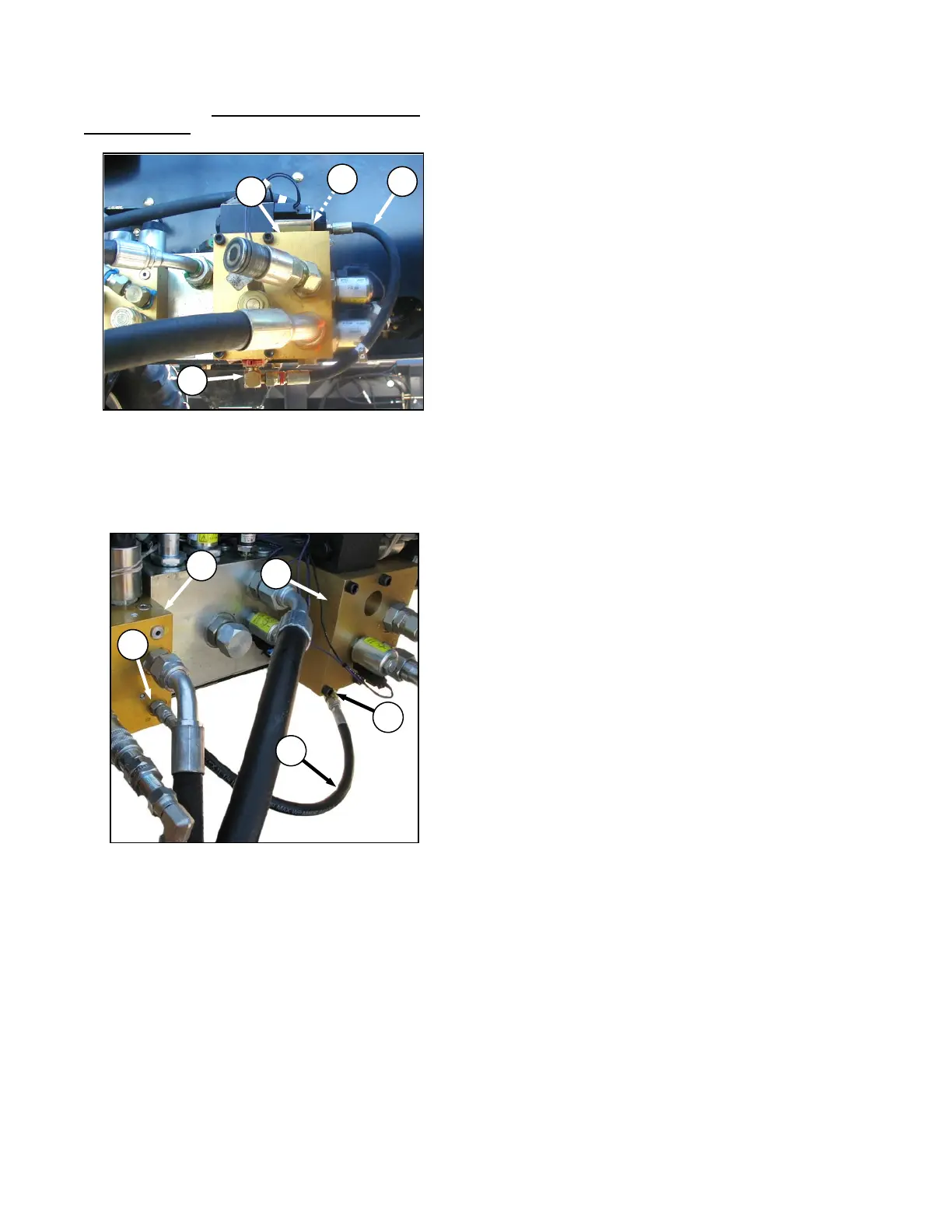

d. To route hose (B) from A30-S, A30-D position to
A40-D position:
1. Disconnect jumper hose (B) at 90° fitting in
port R4.
2. Rotate 90° fitting (D) under reverser valve
block (A) so that hose can be routed to port
C2 on header drive valve block (C).
3. Remove cap from fitting in header drive
valve block port C2, and connect jumper
hose (B) to port C2 fitting.
4. Install cap removed in step 3. on 90° fitting
in port R4 on reverser valve block (A).
e. Move LH maintenance platform to normal
operating position.
