j. Push hose connectors onto mating receptacles
as shown until collars on receptacles snap into
lock position.
k. Activate header tilt cylinder switches to extend
and retract center link. Check for sufficient
clearance between hoses and electrical
harness.

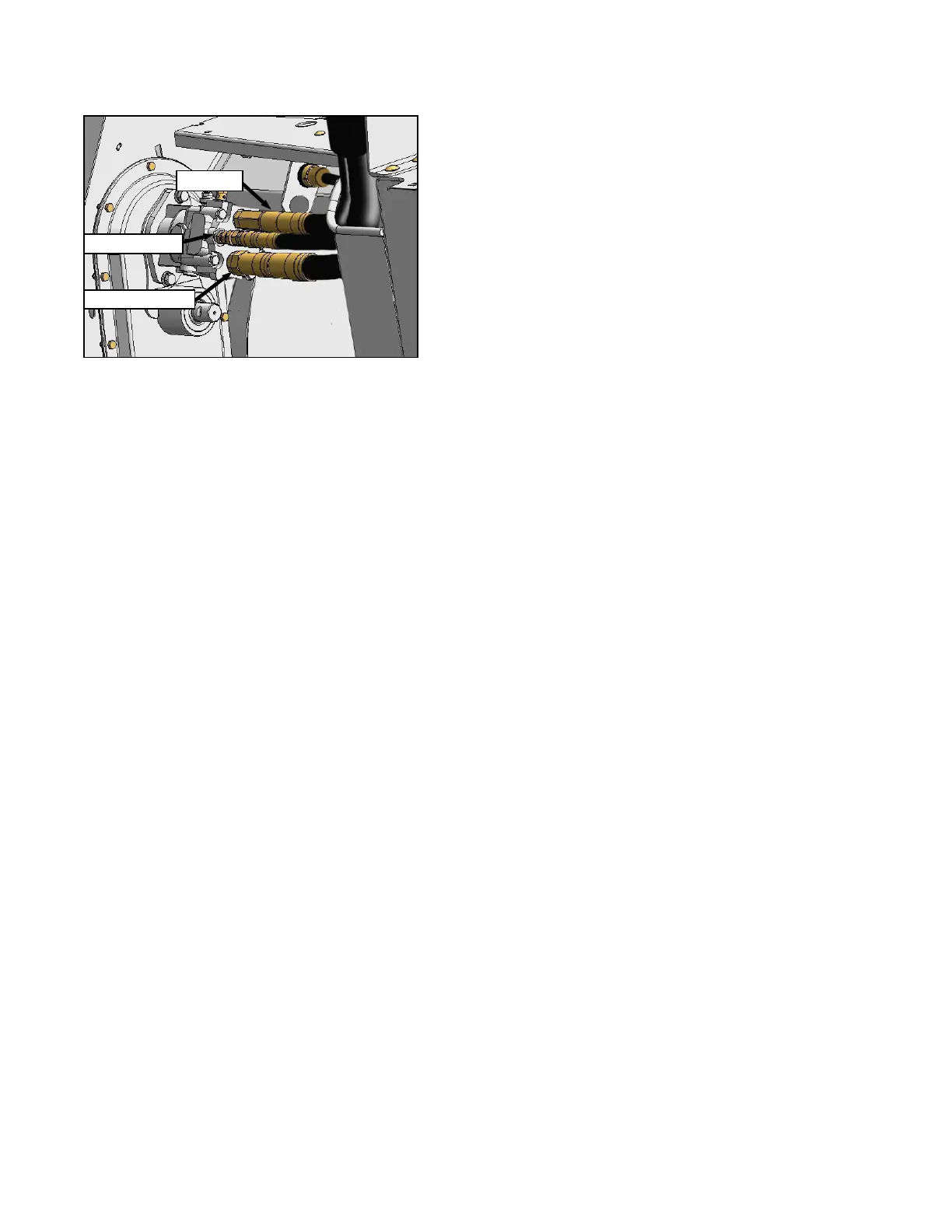

RETURN
CASE DRAIN
HEADER DRIVE
