214923 10 Revision A
1001403
A

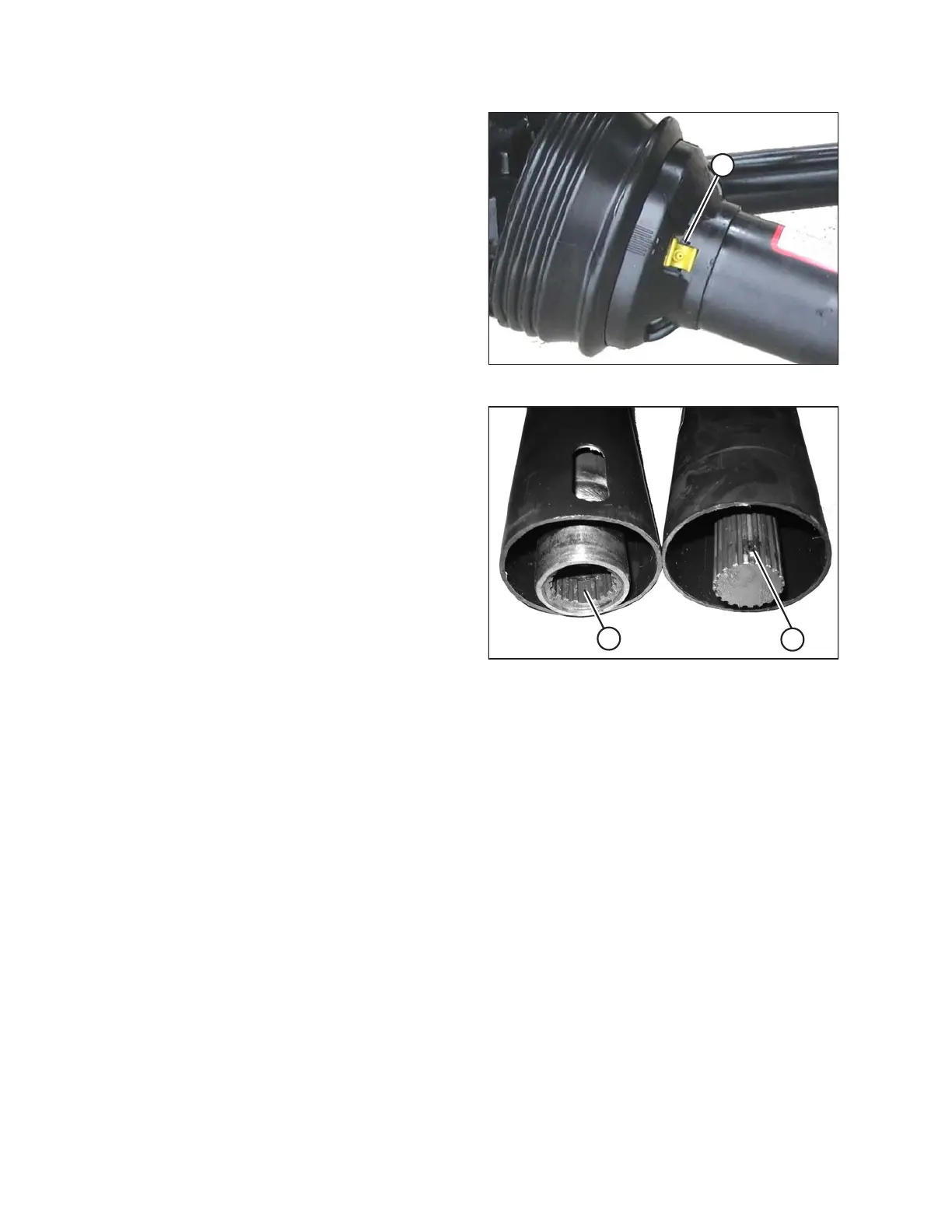

Figure 2.11: Driveline Guard
4. Push the grease fitting (A) back into the guard.
5. Grease the driveline.
1001404
A
B
Figure 2.12: Driveline
6. Assemble the driveline.
IMPORTANT:
The splines are keyed to align the universals. Align weld (A)
with the missing spline (B) when assembling. Failure to
align the halves of the shaft can cause excessive vibration
and feed auger/gearbox failures.
INSTALLATION INSTRUCTIONS
