MacDon CA20 - Installing Driveline - CA20 and CA25

214923 13 Revision A

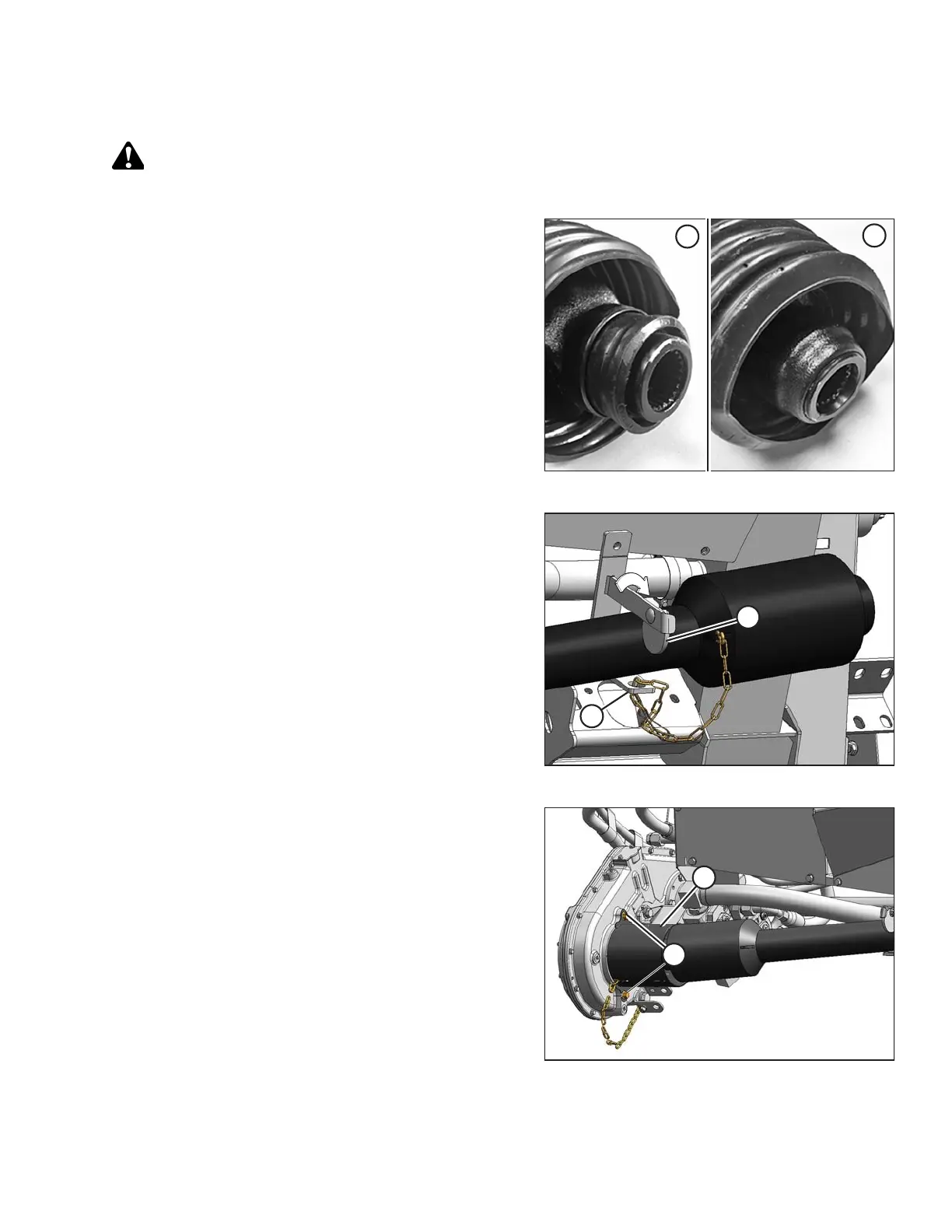

2.4.2 Installing Driveline – CA20 and CA25
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
1028284
A
B
Figure 2.16: Driveline Halves
IMPORTANT:
If the combine output shaft splines match the adapter input
shaft splines, ensure the driveline is installed with the
shorter guard (A) at the combine end and the longer
guard (B) at the adapter gearbox end.
B
A
1001420
Figure 2.17: Combine End of Driveline
1. Slide the driveline into the hook (A) so the disc (B) drops
and secures the driveline.
1001161
A
B
Figure 2.18: Adapter End of Driveline
2. Slide the shield (B) over the driveline.
3. Position the driveline quick disconnect onto the adapter
gearbox shaft, pull back the collar, and slide onto the shaft
until the yoke locks onto the shaft. Release the collar.
4. Position the shield (B) on the gearbox and secure with
nuts (A).
5. Connect the opposite end to the combine if necessary.
INSTALLATION INSTRUCTIONS
