214923 12 Revision A
1023810
A
B
C
D
E

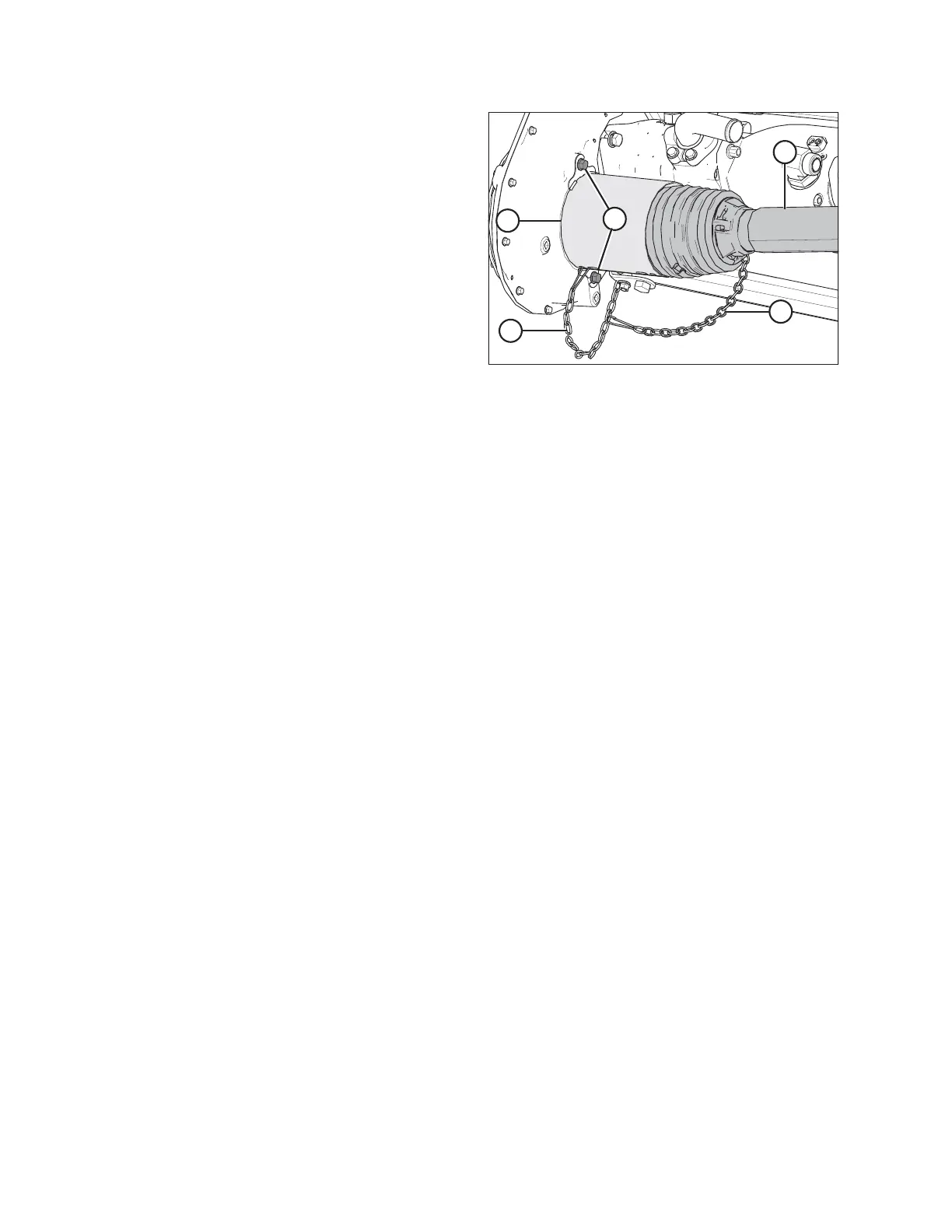

Figure 2.15: Float Module End of Driveline
3. Slide shield (A) over driveline (B).
4. Position the driveline quick disconnect onto the float
module gearbox shaft, pull back the collar, and slide it onto
the shaft until it locks in place. Release the collar.
5. Position shield (A) on the gearbox and secure with bolts (C).
6. For drivelines equipped with safety chains, attach chain (D)
at the module end to chain (E) on the shield.
INSTALLATION INSTRUCTIONS
