ASSEMBLING THE WINDROWER
3.22.2 Lubrication Points

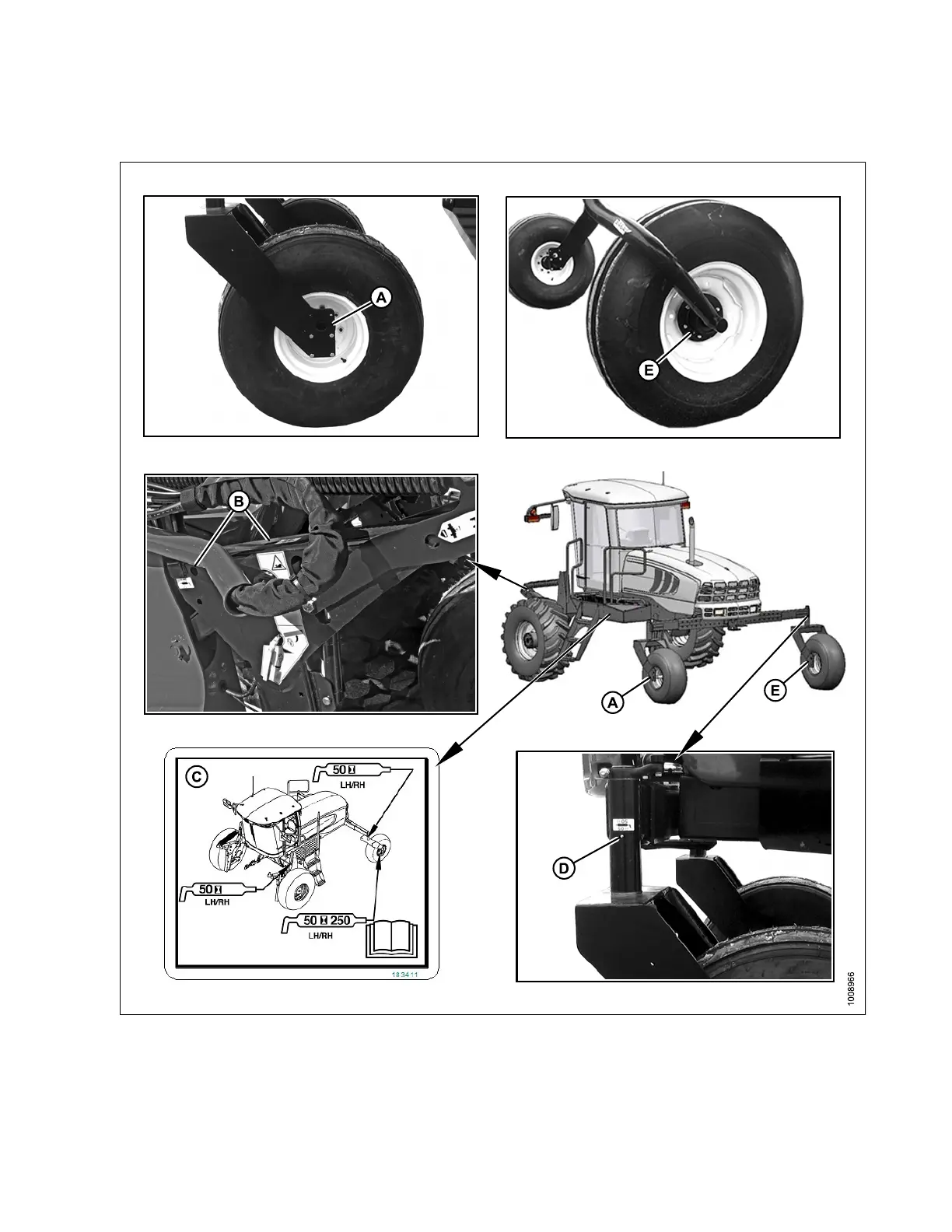

Fig
ure 3.291: Lubrication P oints
A - Forked Caster Wheel Bearing (Two Places) (Outer – Both Wheels)
B - Top-Link (2 Places) (Both Sides)
C-
Lubrication Decal (MD #183411)
D - Caster Pivot (Both Sides)
E - Fo rked/Formed Caster Wheel Bearing (Two Places) (Inner – Both Wheels) (50 Hrs/250 Hrs)
