CAB DISPLAY MODULE (CDM)
6. Press SELECT (D) until AUGER SPEED is displayed
on the upper line.
• ENABLED/LOC KED is displayed on t he lower line.
7. Press left (B) arrow to enable AUGER SPEED
control switch.
Press right (C) arrow to lock AUGER SPEED
control switch.
8. Press PROGRAM (A) to exit Programming Mode, or
press SELECT (D) to proceed to next WINDROWER
SETUP action.

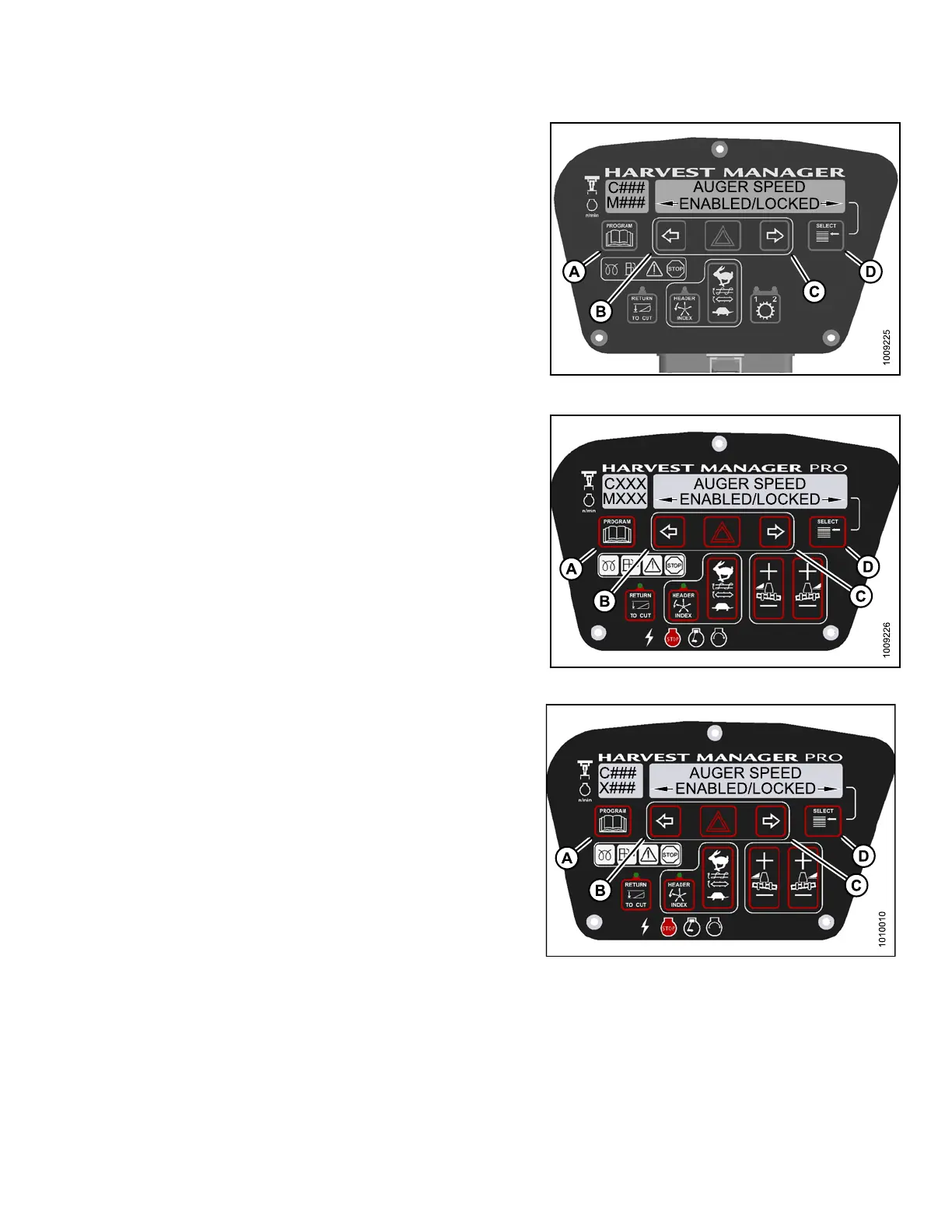

Figure 4.1
91: M105 Auger Control Lock
Figure
4.192: M155 Auger Control Lock
Figure 4.193: M205 Auger Control Lock
4.5.6 Activating the Reel Speed Control Lockout
N
OTE:
The header MUST be attached to the windrower to perform this procedure. The cab display module (CDM)
automatically adjusts its programming for each header.
147962 237 Revision A
