CAB DISPLAY MODULE (CDM)
4. Press SELECT (D) until HEADER CUT WIDTH?HDR
CUT WIDTH? #### is displayed on the upper line.
• Previous c utting width is displayed on the lower line.
5. Press left (B) or right (C) arrows to change the headers
cut width. Press SELECT (D).
6. Press PROGRAM (A) to ex it Programming Mode or
press SELECT (D) to proceed to next WINDROWER
SETUP action.

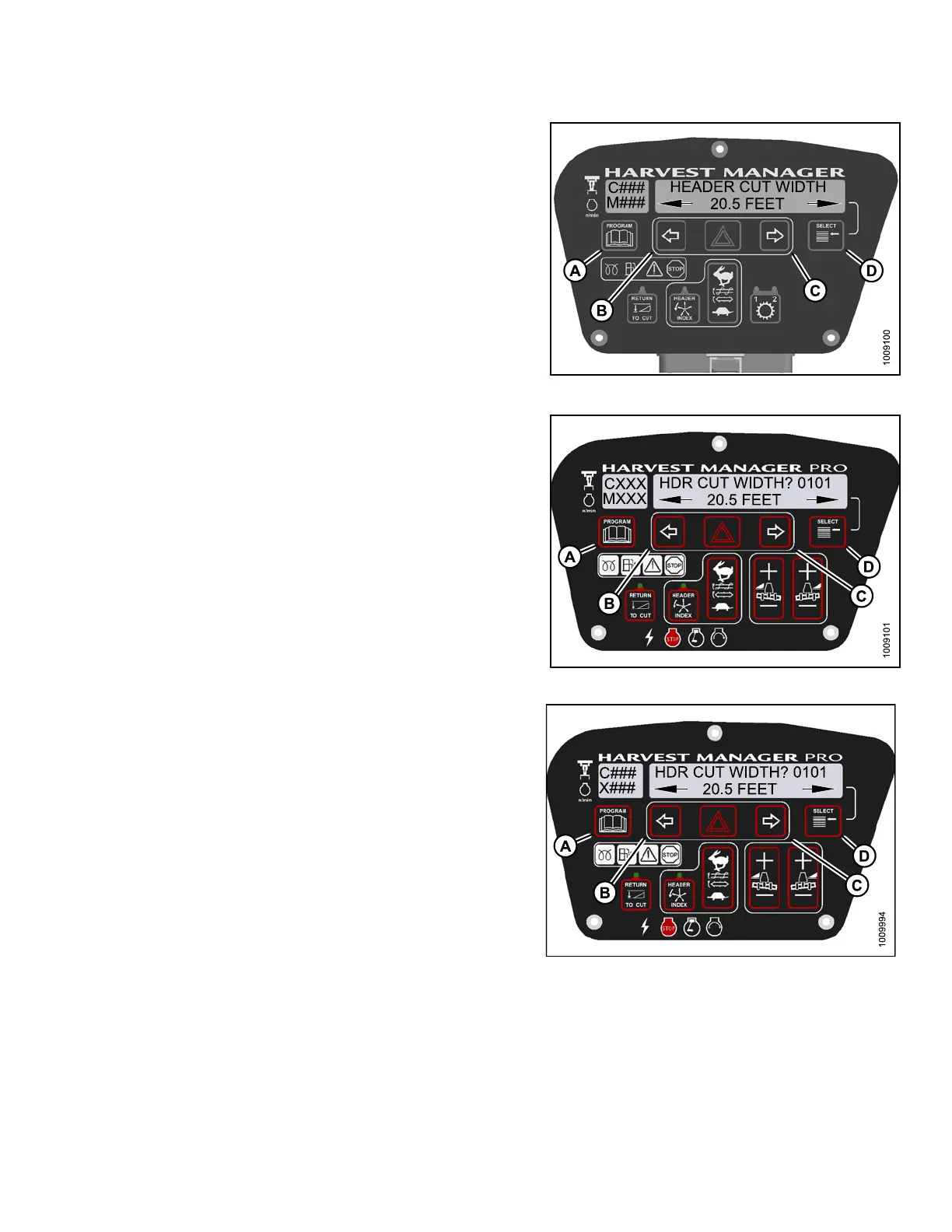

Figure 4.1
15: M105 H eader Cut Width
Figure
4.116: M155 Header Cut Width
Figure 4.117: M205 Header Cut Width
147962 203 Revision A
