12

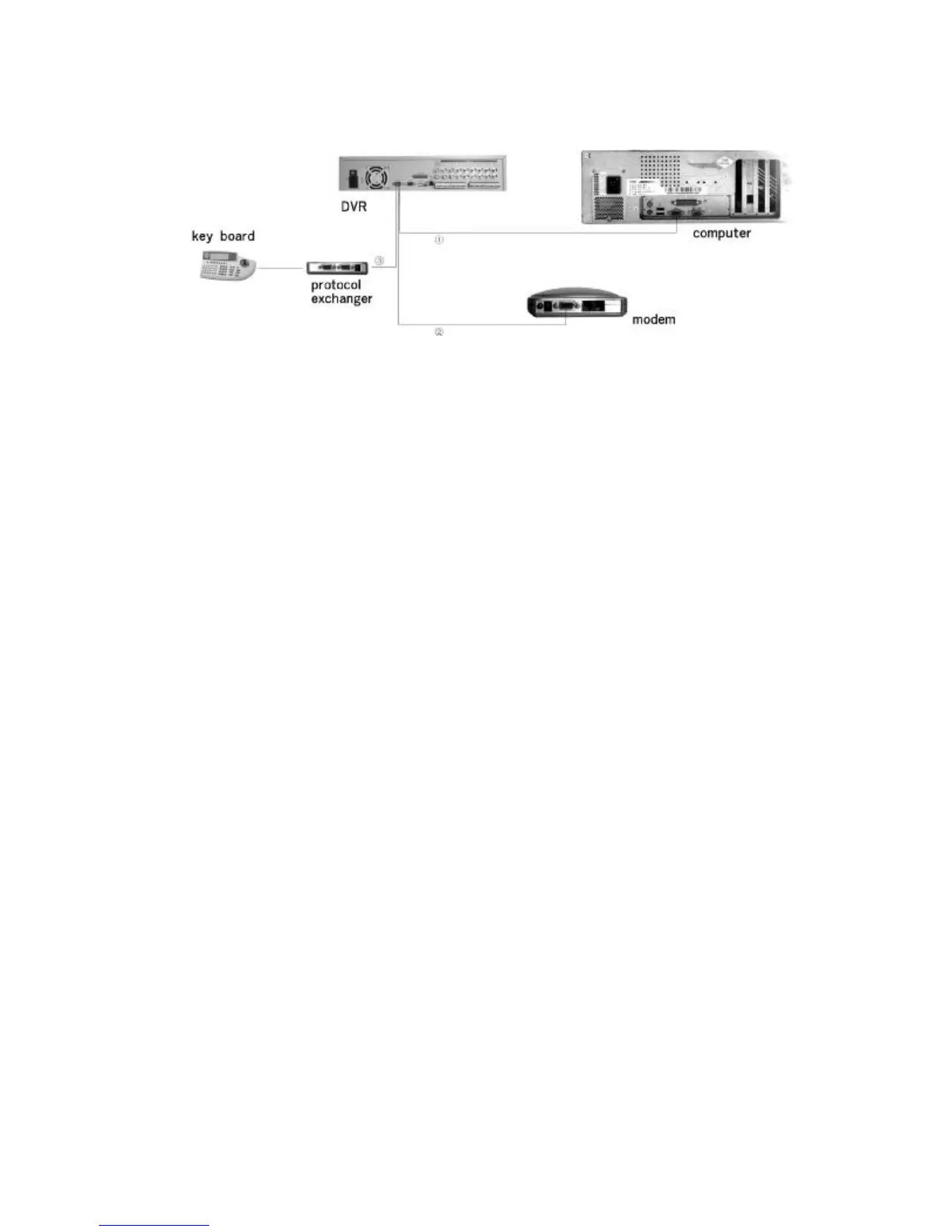

4.1 Serial port connection and extension
Note: ① The connection for program upgrading or debugging through serial port ② The connection for dial-up login through
MODEM ③ The connection for DVR control through keyboard
