d.4 Pro DJ Production Console
d.4 Pro 4-channel DJ Production Console
Hookup Diagrams
Mobile DJ System: Rental, or Wedding
Microphones
Headphones
Plug into
front panel
headphone jack
Effects Processor
Pro CD Player
Laptop Computer
SWA1501
Po wered Subwoofer
SWA1501
Po wered Subwoofer
SRM450
Po wered Speaker
Main Left
Main Left Main Right
SRM450
Po wered Speaker
Main Right

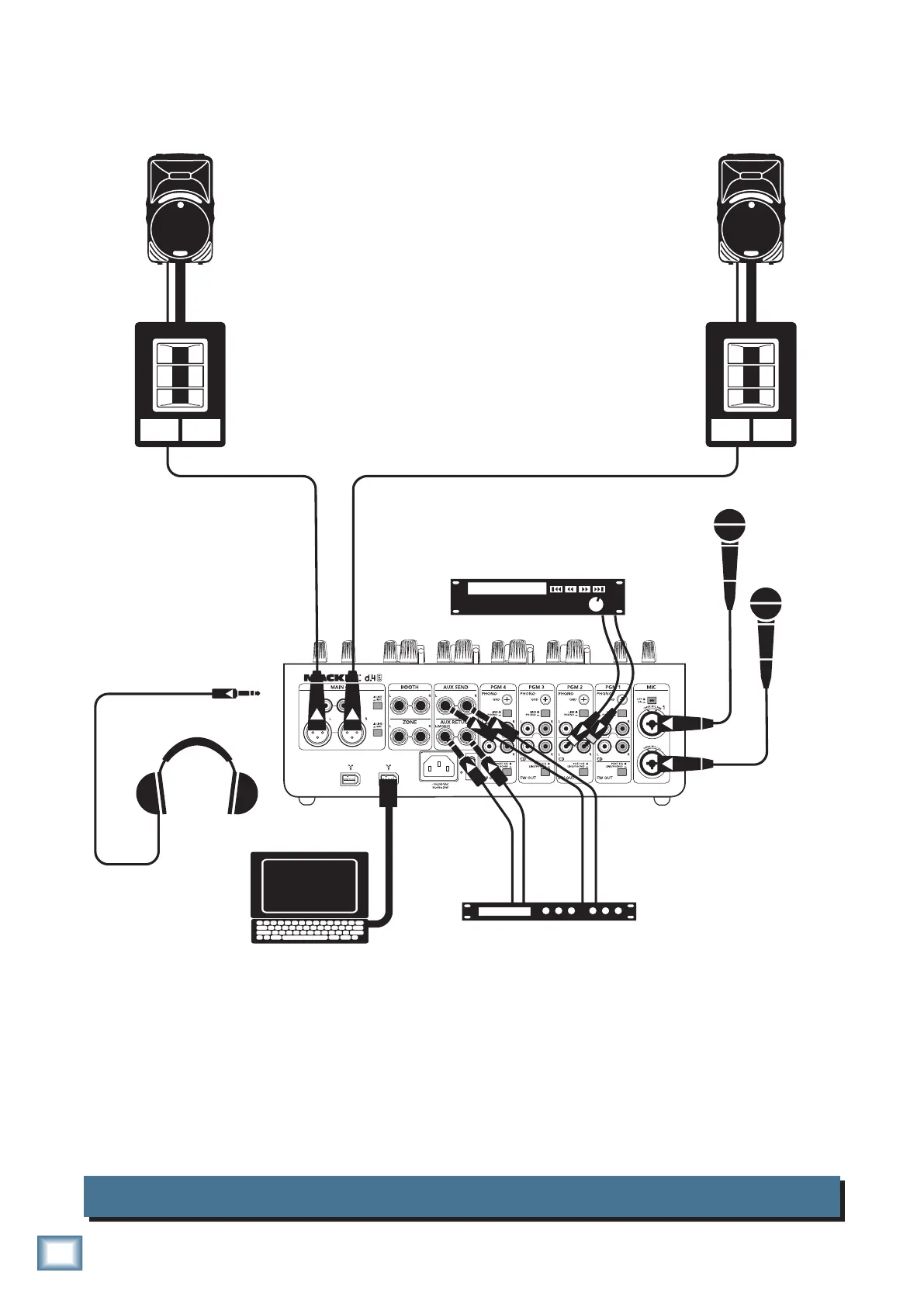

This diagram shows a CD player and microphones connected, with an effects device in the aux loop,
and a laptop attached. Various popular DJ software such as Traktor™, PCDJ™, and MixVibes™, can be
used with the d.4 Pro via the FireWire connection. The main mix can also be recorded with software such
as Tracktion.
