Rigging Notes
A minimum of two rigging points must be used
to hang a DRM2A. More may be used for creating

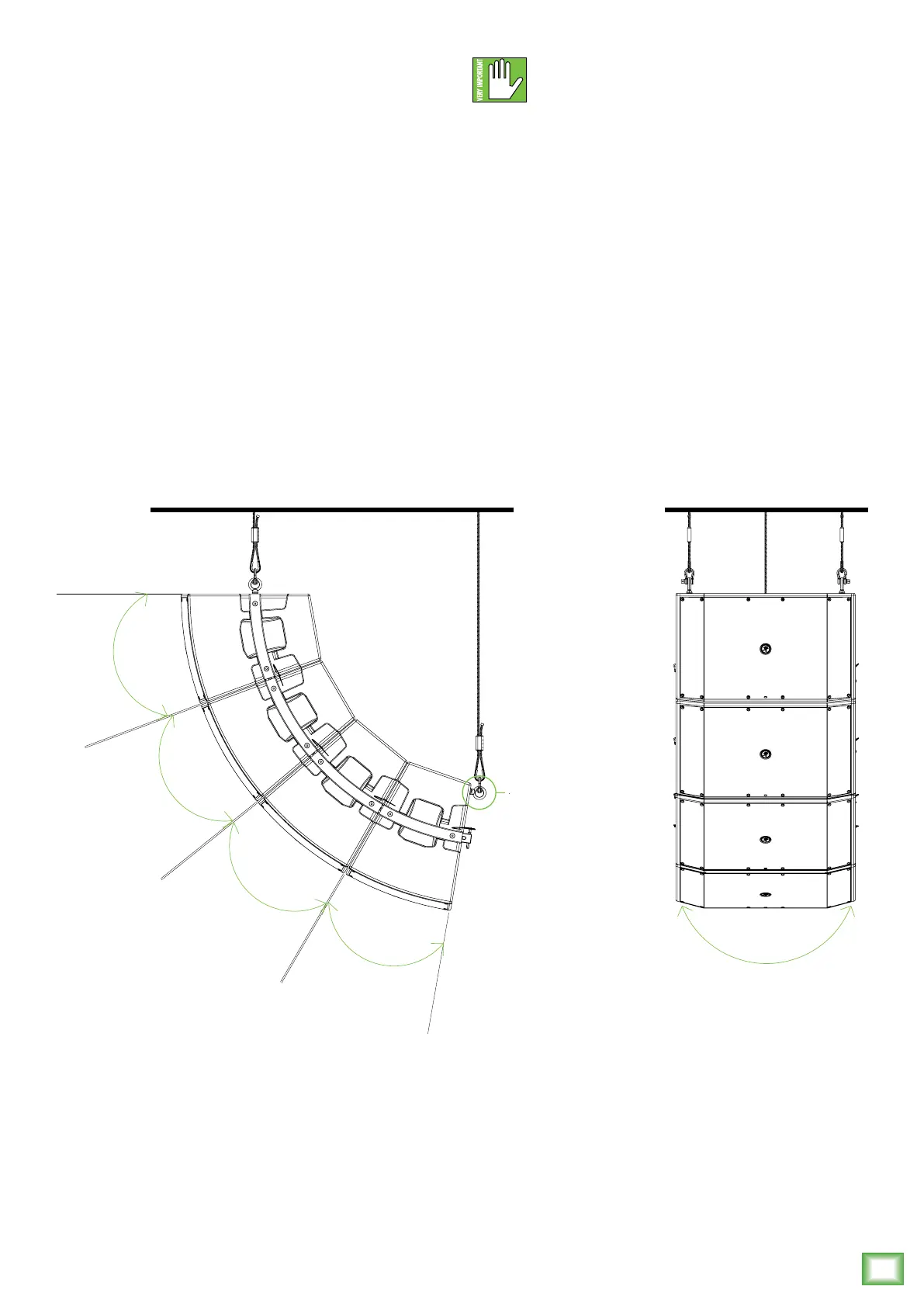

the desired hanging angle as shown in the illustrations
below.
The illustrations provided below is just one rigging
possibility. Refer to the hookup diagrams to view
additional rigging suggestions.
WARNING: When the FB00 Flybar is used
to suspend a system, it cannot retain a 0:
design factor at certain pick points. In some
situations, suspended and installed arrays may be
configured with other design factors (e.g. 8: or 5:),
LOUD Audio, LLC. only recommends using the
desired 0: design factor. Please refer to the table on
page 22 for the recommended setup for your system.
20˚
See ‘A note
on eyebolts’,
page 24
20˚
20˚
20˚
110˚
To Next Page
