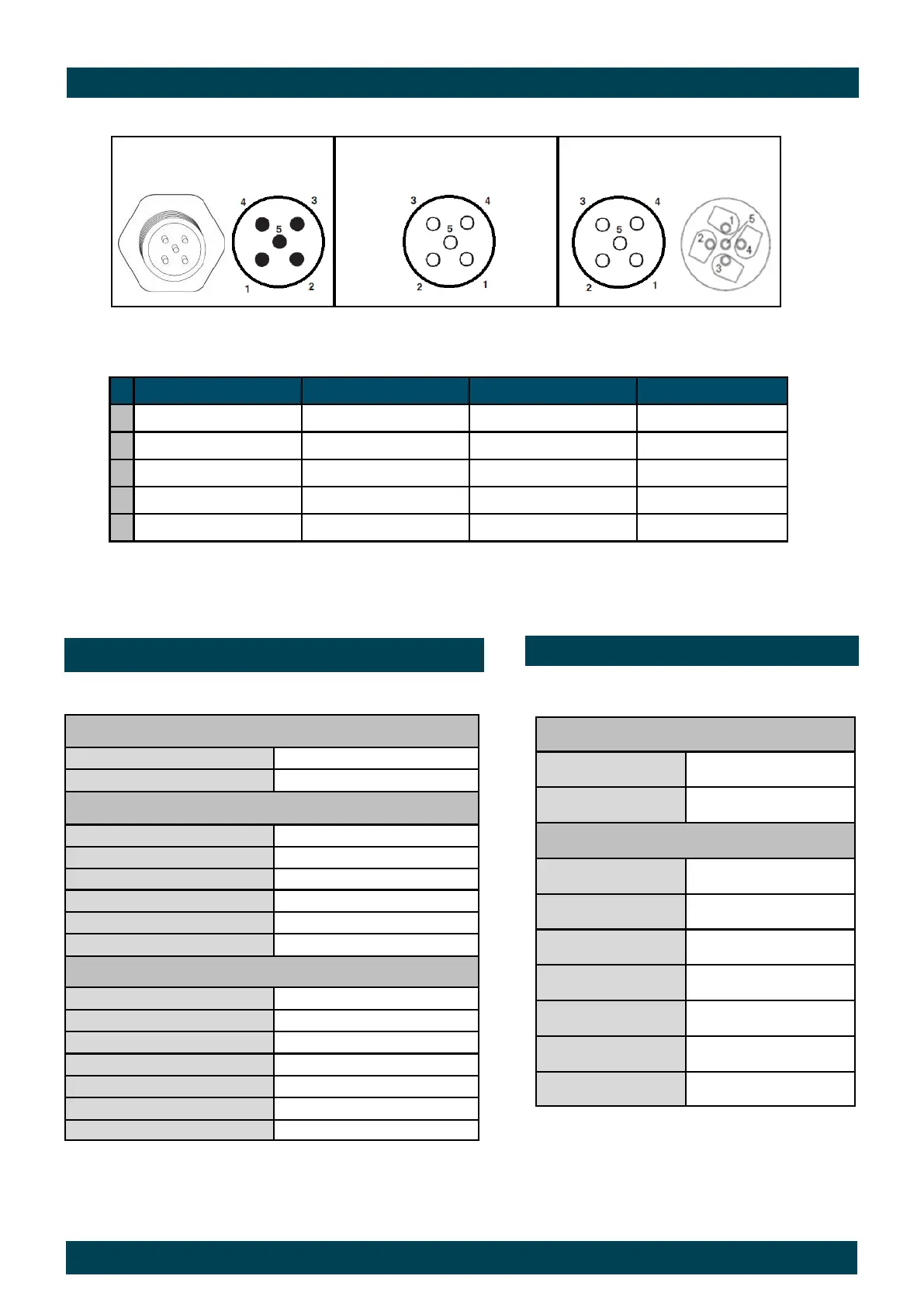

DIN Compact Pulse Module Output Type (MXD-xx)
Cable Colour Dual Reed Module Dual Hall Module Reed / Hall Module
1 Brown N/A HE Supply (VCC) HE Supply (VCC)
2 White Reed Signal 1 HE Signal 1 (V out) HE Signal (V out)
3 Blue Reed Ground 1 HE Ground HE Ground
4 Black Reed Signal 2 HE Signal 2 (V out) Reed (Signal)
5 Green-Yellow Reed Ground 2 N/A Reed (Ground)
General
Connector M12
Standards / regulations IEC 61076-2-101
Technical Specifications
Number of positions 5
Protection IP67
Conductor cross section 0.25mm² - 0.75mm²
Material of body PTB
Sealing material NBR (nitrile rubber)
Ambient temperature -25°C - 85°C (plug and socket)
Rated voltage / current 60v / 4A
M12 Field Connector
M12 DIN Female Cable Connector
General
Connector M12 (right angle)
Standards / regulations IEC 61076-2-101
Technical Specifications (Plug and socket)
Number of positions 5
Protection IP67
Material of body TPU (thermoplastic polyurethane)
Rated voltage / current 60v / 4A
Contact resistance Max 5 mΩ
Ambient temperature (plug and socket) -25°C - 90°C
Technical Specifications (cable)
Core Number 5 core
Core colours brown, white, blue, black, green-yellow
Cable material PUR (polyurethane)
Conductor cross section 5 x 0.34mm² (signal lines)
Rated voltage / current 60v / 4A
Ambient Temperature (operation) -25°C - 80°C (cable, fixed installation)
Cable resistant to acids, alkaline solutions and salt water
M12 male connector
M12 Female Cable Connector
M12 Field Connector
