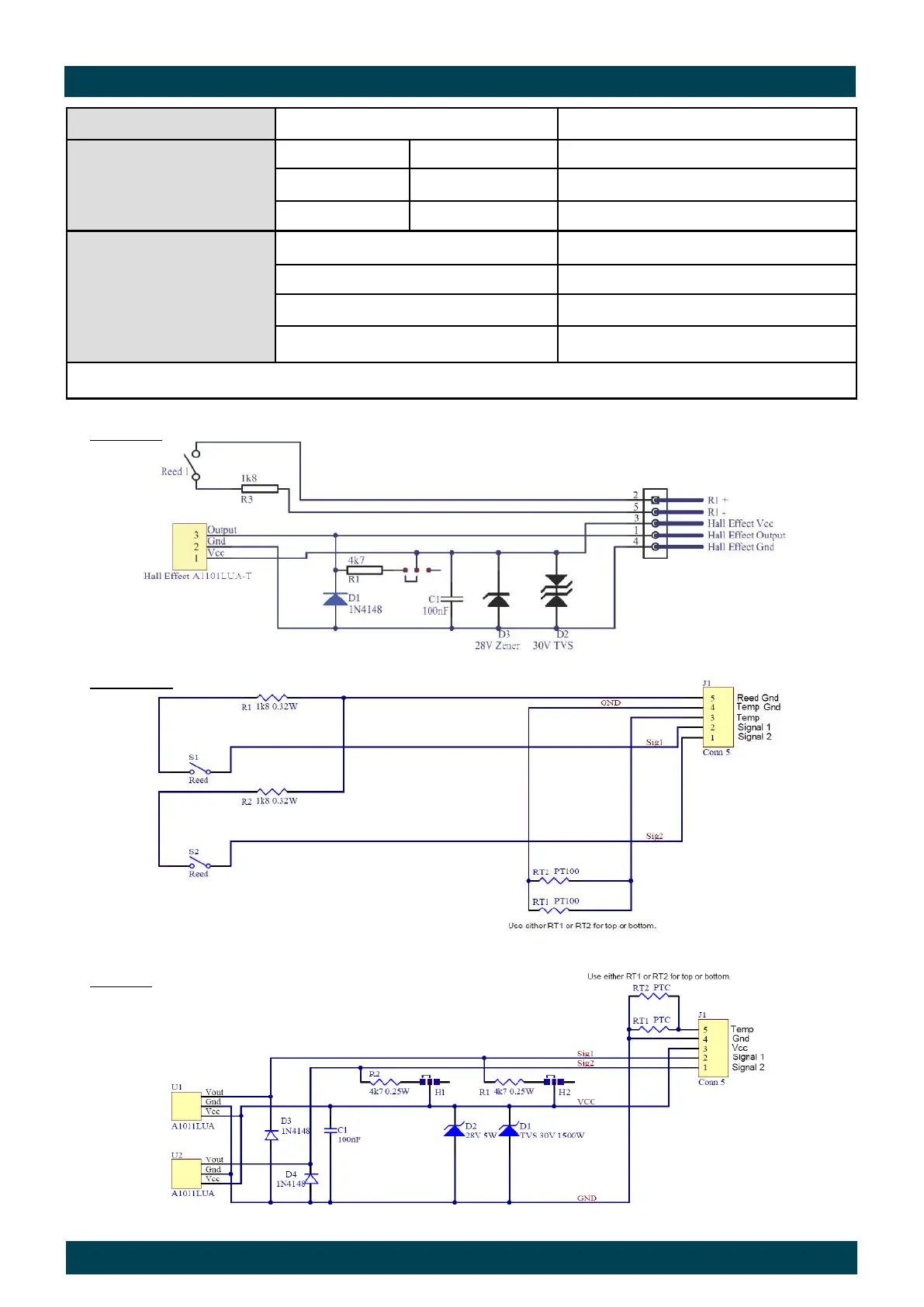

PCB Specifications Standard / Industrial Pulse Caps / DIN Compact Pulse Module
Output Signals Standard Pulse Meter 2 x Digital (Square Wave)
Reed Switch
(Mechanical Sensor)
Current Maximum 500mA
Voltage Maximum 30V DC
Contact Rating
Maximum
1
10W
Hall Effect Switch
(Electronic Sensor)
Maximum Supply Current 7.5mA
Maximum Output Current 25mA
Operating Voltage
4.5V to 24V DC
Output Type Open-Collector NPN
1.Contact rating maximum is 10W. Neither current nor voltage maximums should be exceeded in achieving this.
Reed/ Hall
Reed/ Reed
Hall/ Hall
