Macnaught MX Series - DIN Compact Pulse Module Information

Page 13 of 31

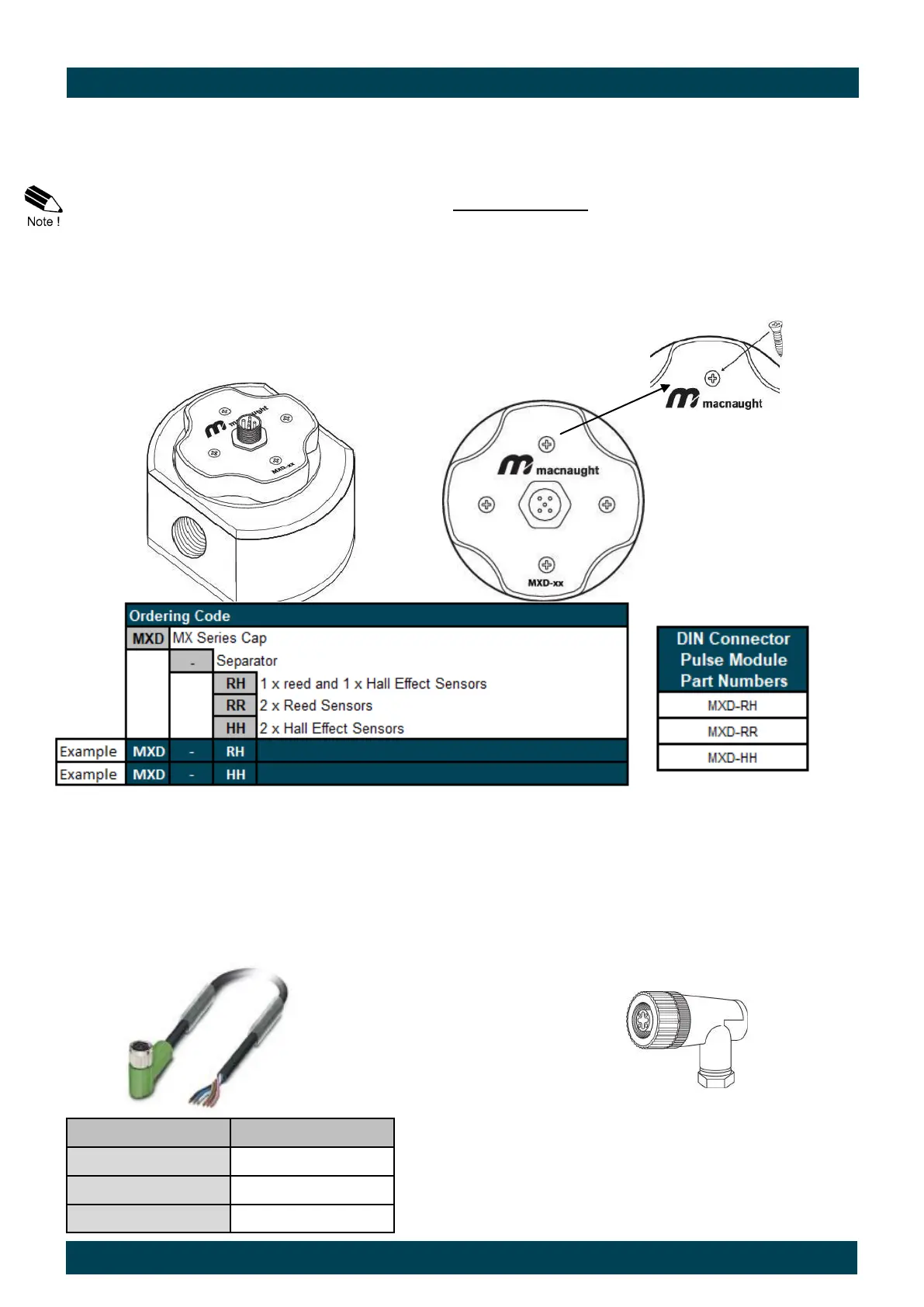

DIN Compact Pulse Module Output Type (MXD-xx)
DIN Compact Pulse Module incorporates the M-LOCK (¼ turn) mounting system. It provides a locking facility for
added security against unauthorised removal. A locking screw is supplied with DIN compact pulse cap to accom-
plish the job by fitting module to the flow meter using M-lock feature and replacing the existing screw with locking
screw.
During initial installation of the locking screw, the screw will need to pierce the bottom of the pulser.
This will enable the screw to „lock‟ into the plastic cam that is fixed to the flow meter.
The available options are:
 DIN Module with 1 x Reed and 1 x Hall effect sensor (MXD-RH)
 DIN Module with Dual Hall Effect sensors (MXD-HH)
 DIN Module with Dual Reed Switches (MXD-RR)
The DIN Compact Pulse Modules accommodates the choice of either a field mountable connector facility, or a
fixed (M12) connection cable.
 M12 DIN plug and socket complete with 5 core cable.
 Field attachable socket with 5 position screw terminals
M12 DIN cable
Field attachable socket/connector
Part number: MXD-CF
Cable Length Part Number
1.5 Meters MXD-C1.5
5 Meters MXD-C5
10 Meters MXD-C10
Illustration
