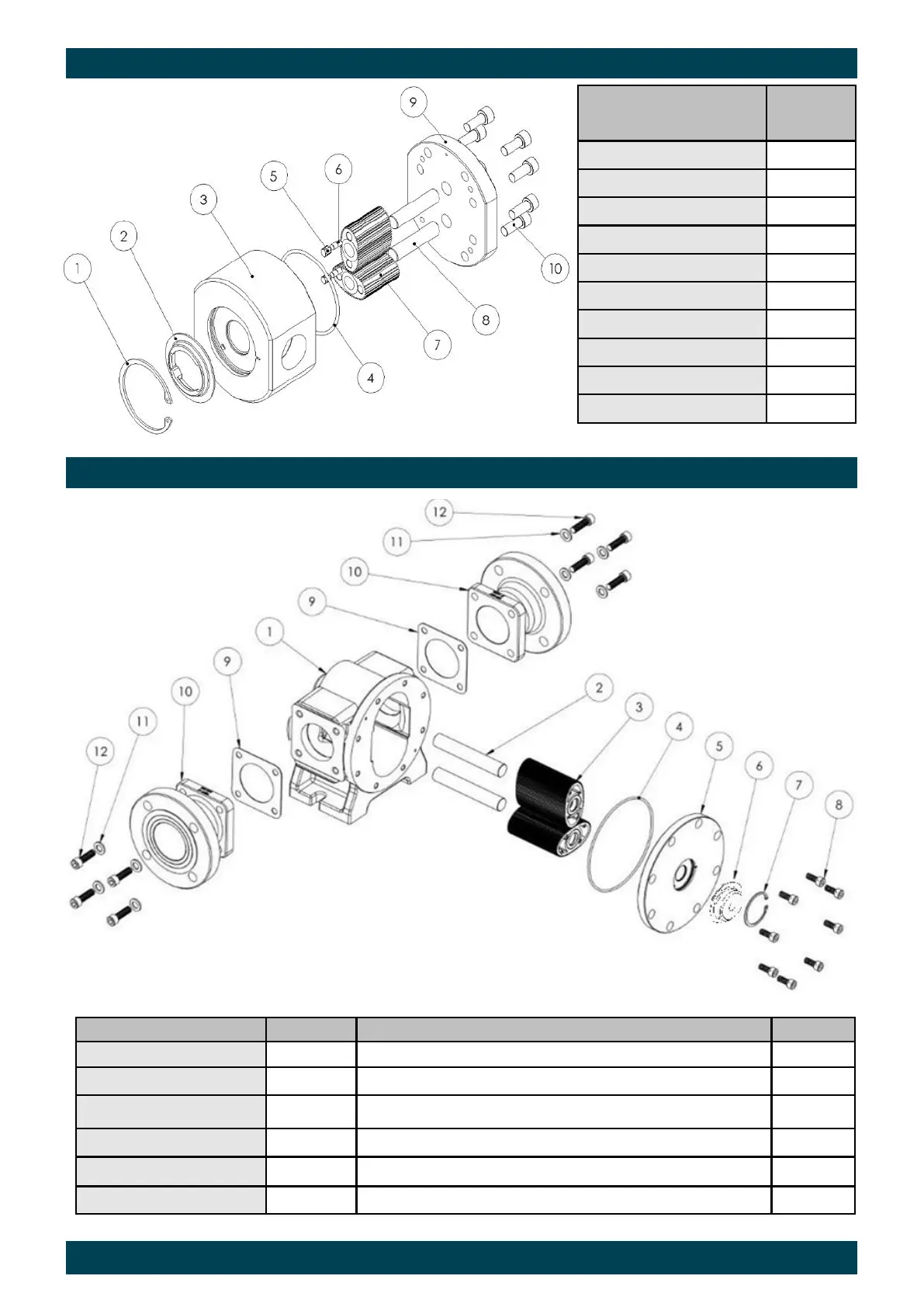

Macnaught MX Series - Exploded View MX06-MX50; Exploded View MX75-MX100

Page 18 of 31
METER COMPONENTS ITEM NO
CIRCLIP 1
CAM 2
METER BODY 3
METER CAP O-RING 4
MAGNET HOUSING 5
MAGNETS 6
ROTOR SHAFTS 7
LOCATING PIN 8
METER CAP 9
METER CAP SCREWS 10
METER COMPONENTS ITEM NO METER COMPONENTS ITEM NO
METER BODY 1 CIRCLIP 7
ROTOR SHAFTS 2 METER CAP BOLTS 8
ROTORS 3 FLANGE SEALS 9
METER CAP O-RING 4 PROCESS CONNECTION (FLANGED OR THREADED) 10
METER CAP 5 FLANGE WASHERS 11
CAM 6 FLANGE BOLTS 12
EXPLODED DIAGRAM models MX06-MX50
EXPLODED DIAGRAM models MX75-MX100
