Macnaught MX Series - Flowmeter Dimensions MX100

Page 29 of 31

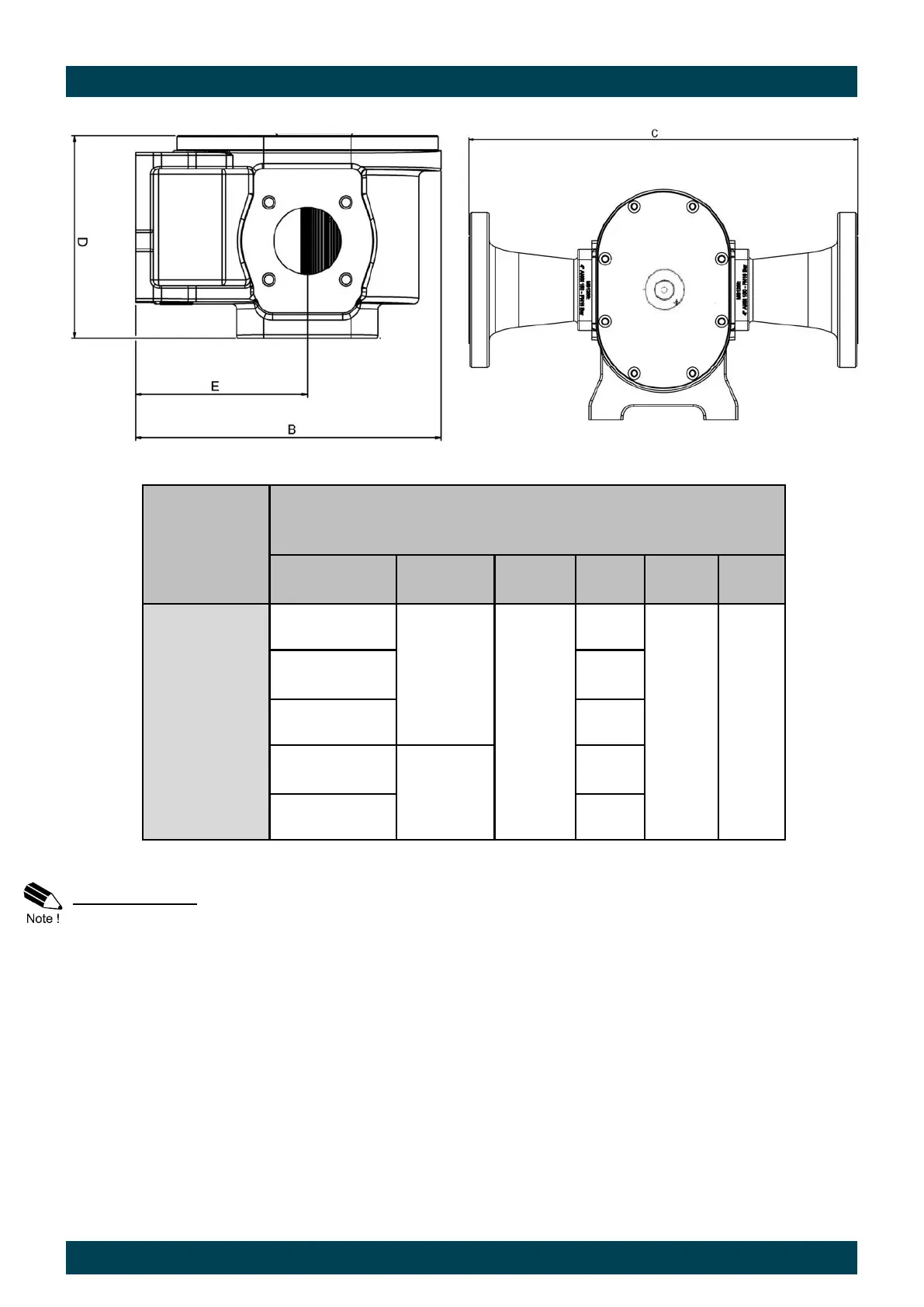

FLOWMETER DIMENSIONS MX100
METER and FLANGE DIMENSIONS
MODEL
FLANGE
TYPE
PORT
SIZE
B C D E
MX100
Aluminium
ANSI
4”
340
583
225 191
DIN 583
JIS 583
Rp
3”
301
NPT 301
FLANGE TYPES: ANSI flanges 150 # and DIN PN 16 flanges are raised faced (RF) while JIS 10k flanges are flat
faced (FF) by default. Contact Macnaught if a different configuration is required.
