13 Network Installation
© 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com
Controller 30 Operation Manual 90-30016-00 Rev A-01 Date: 031920
AVD 370 RJ45 Wiring Instructions cont.
A repeater is required for every 5 fans, which will be spliced evenly in the CAT5e network
between fans. Repeaters are not required on networks with 4 fans or less.

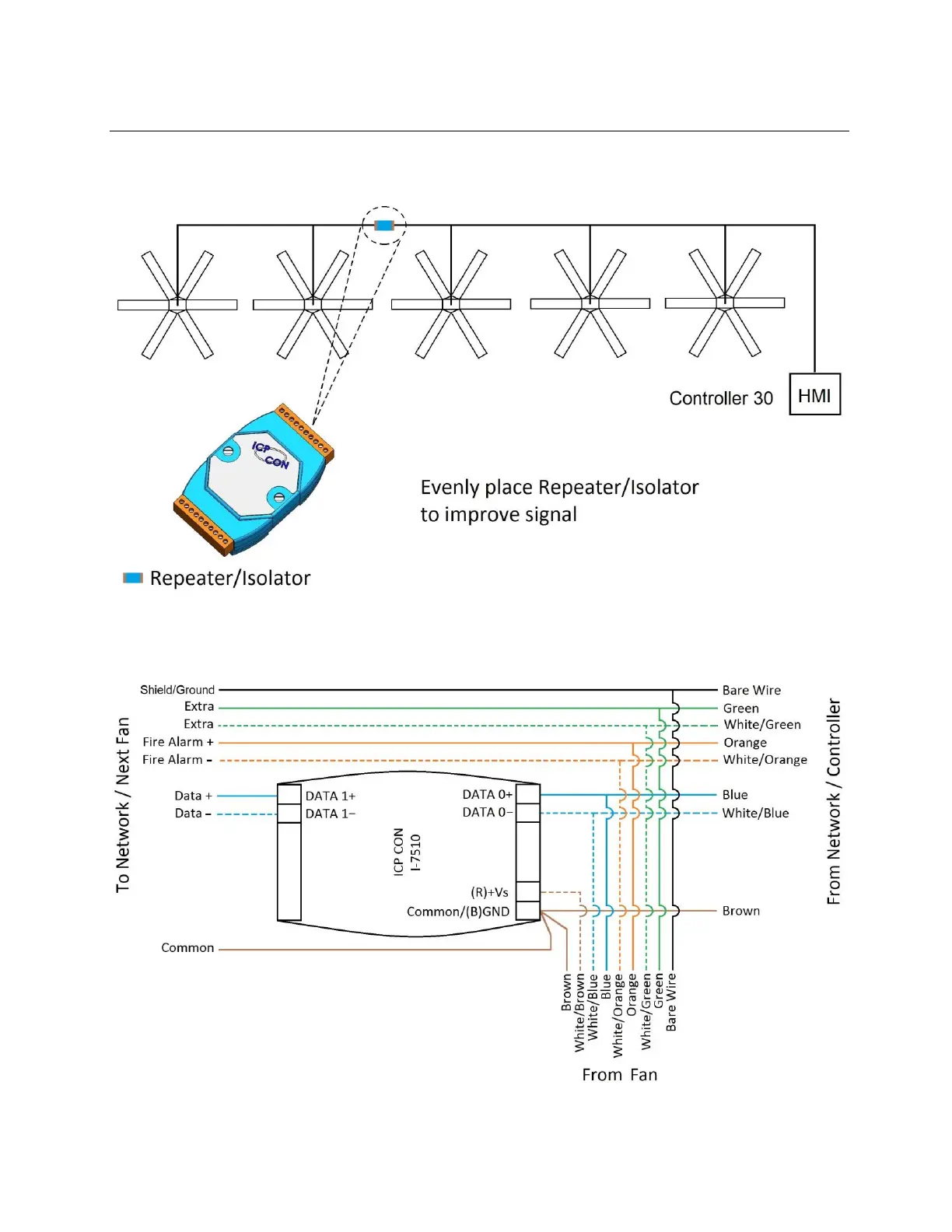

Repeater Wiring Diagram
