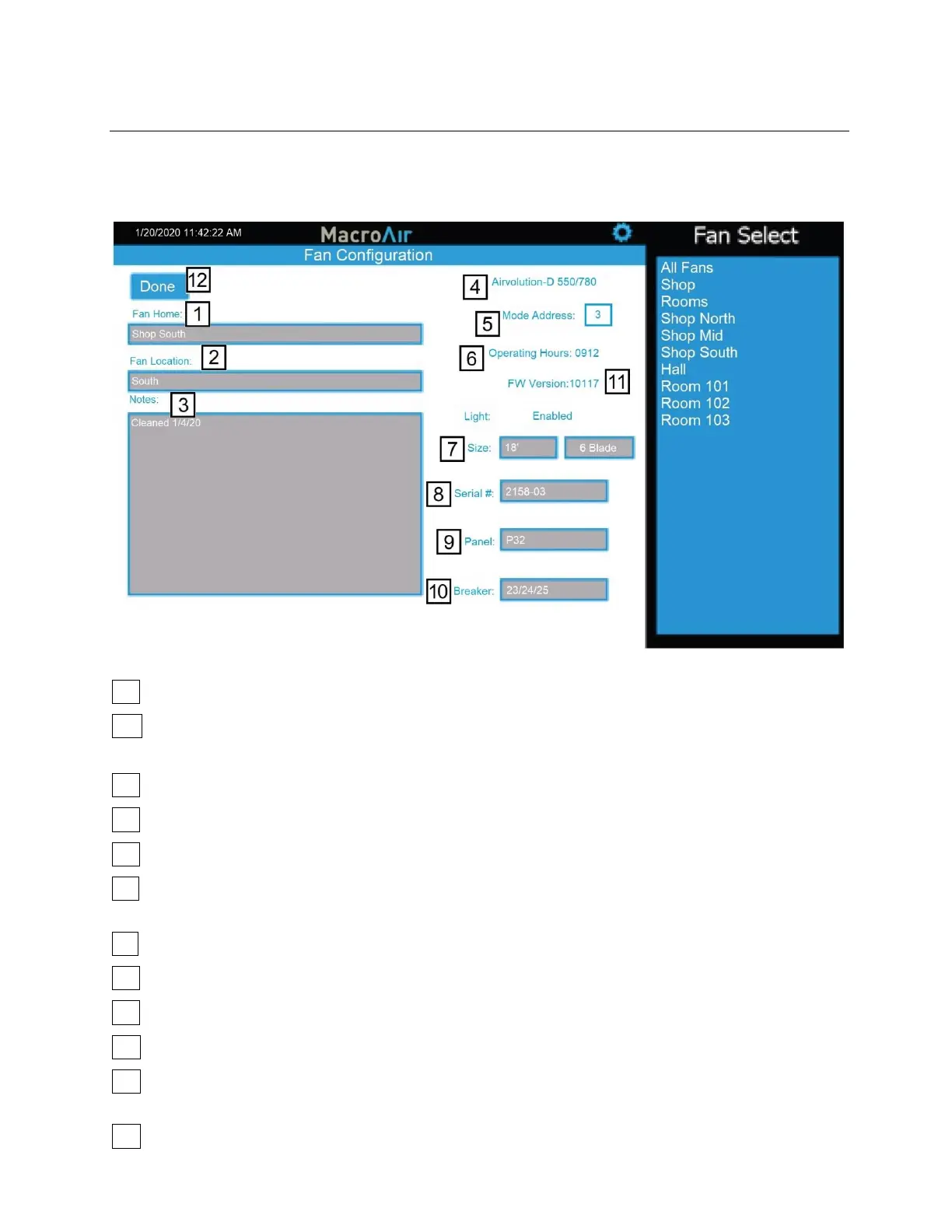

Fan Configure Screen

Tapping the Configure button on the fan control screen will bring you to the fan configure

screen. This screen displays basic information on the fan. This screen also provides fields to input

information that may prove useful for reference or troubleshooting.

Note: Entry on the screen for items 1, 2, 3, 8, 9 ,and 10 are done on a pop-up keyboard.

1 Fan Name - Changes the name that is displayed for the fan.

2 Fan Location - Allows you to input a location (for example “Loading Dock”) which can help

identify the fan.

3 Notes - Any additional notes on the fan you would like to include.

4 Type - Displays the fan model.

5 Node Address - Displays the network address of the fan.

6 Operating Hours/Voltage - Displays the operating hours for AVD fans/Displays incoming

voltage rating of the VFD for AirVolution Legacy fans.

7 Size - Allows you to set the fan size. Required for AVD3, 550, 780, and X Series.

8 Serial - Allows you to input the serial number of the fan for easy reference.

9 Panel - Allows you to specify the electrical panel the breaker is in for easy reference.

10 Breaker - Allows you to specify the breaker number the fan is on for easy reference.

11 FW - The FW version on AVD 370 is displayed, on AVD3, 550, 780, Y and X Series FW

displays a Status Code.

12 Done - Returns to the Fan Screen.
