MacroAir Technologies Controller 30 User Manual

17 Network Installation
© 2020 MacroAir Technologies Toll Free: 866 668 3247 Fax: 909 890 2313 www.macroairfans.com
Controller 30 Operation Manual 90-30016-00 Rev A-01 Date: 031920
Mixed Network Wiring Instructions
Networks utilizing different types of connections, will wire each fan according to the preceding

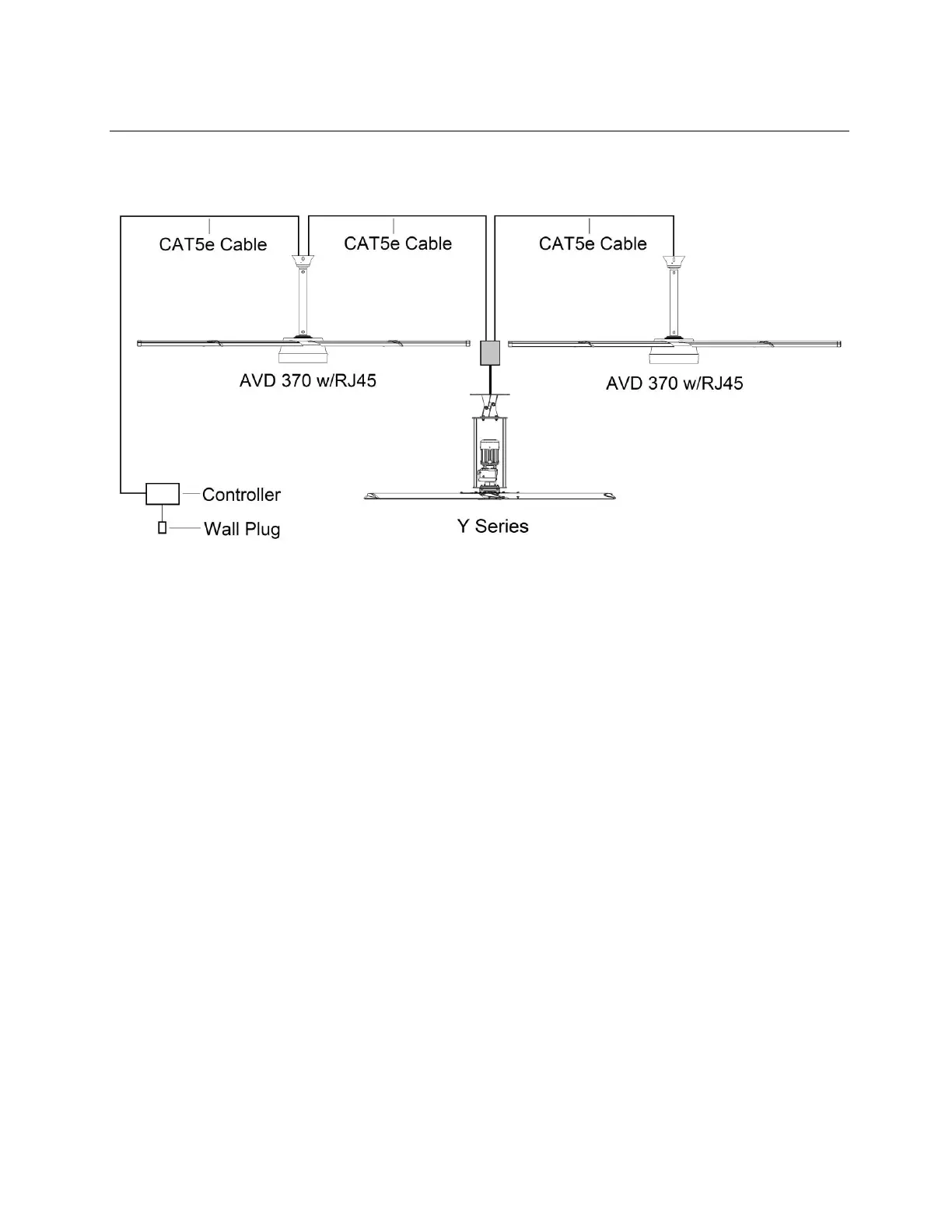

wiring instructions in the manual. Below is an example of wiring for a mixed network:
When networking AVD 370 fans, you will need a repeater for every 5 fans. For example, if you
have twelve fans, but 7 are Y or X Series fans and 5 are AVD 370 fans, you will only need one
repeater.
Note: When installing new fans in an existing mixed network, contact Technical Support for
assistance with networking your fans.
