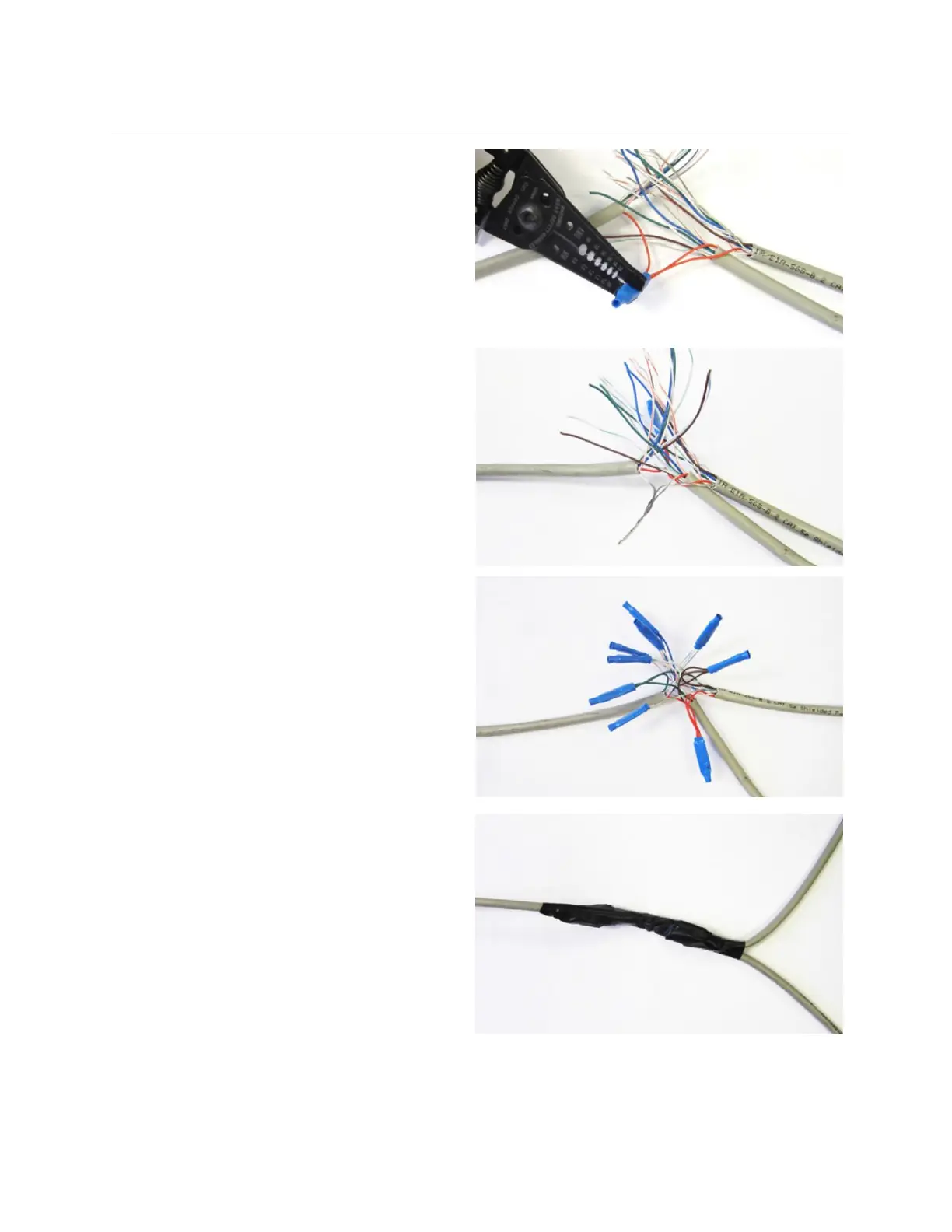

T-Splice Connection Method for AVD 370 Fans cont.
5. Place a gel filled bean crimp onto the end
of the 3 wires and use a small crimper or
pliers to crimp the bean tight on the
wires.
6. Double check that the 3 drain wire/bare
wires are also crimped together as this is
what continues the shielding throughout
the network. The shielding and drain wire
MUST be connected to Earth Ground at
only one point of the cable run.
7. Repeat steps 3-5 for all the wires EXCEPT
the Brown/White wire. The Brown/White
wire is only needed for wiring in a
repeater.
8. Once all the wires are crimped, carefully
twist the wires up. Then fold them back
and tape them up with electrical tape to
clean up your wiring.
