Notes of installation
1) Before installation, please make sure proper connections are conducted
and the unit operates normally. Improper connection may result in
damage to the unit.
2) Use only accessories designed and manufactured for this unit and
other unauthorized accessories may result in damage to the unit.
3) Before installation, please fasten all power cables.
4) DO NOT install the unit in the place where close to hot area to prevent
damage to electrical components such as the laser head.
5) Install the unit horizontally. Install
ing the unit more than 30 degree
vertically may result in worse performance.
6) To prevent electric spark, connect the positive pole first and then the
negative pole.
7) DO NOT block the cooling fan exit to ensure sufficient heating
dissipation of this unit, or it may result in damage to this unit.
Unit Installation
Method A
Insert mounting bracket into dash board, choose appropriate mounting
tab according to the gap width, bending the mounting tab outwards
with a screwdriver to fix the mounting bracket in place.
2 Use 2 pieces of M5×5 cone shaped s
crew to fix two assemble bars
on both sides of the unit(see picture 1)
3 Screw in 1 piece of M5×24 to the hole of the unit back and put on a
rubber sheath over the screw.(see picture 2)
(1)
( )
( )
Long Assemble Bar
M5 X 5
(Picture 1)
Device connections
Installation Guide
1. If relevant, remove any other audio system from the car.
2. Perform the required electrical connections:
- If necessary, connect the hand brake wire to your hand brake contact in order to activate the
video display when playing a DVD (when the car is parked).
- Connect the wire that activates the reversing camera to the reversing sensor or to a reversing
light. If necessary, connect your reversing camera to the car radio’s reversing camera input
using a video cable (not supplied).
- Ensure that you now place the USB cable located at the back of the unit in such a way that it
comes out of the dashboard or the glove box.
3. Then check that everything works before installing the main unit.
4. Remove the two screws on the top of the unit, otherwise, the unit will not work.
5. Install the car radio in the dashboard using the supplied screws (M5x6mm).
6. Attach the outer trim frame.
If you are not sure how to install this unit correctly, contact a qualied technician.

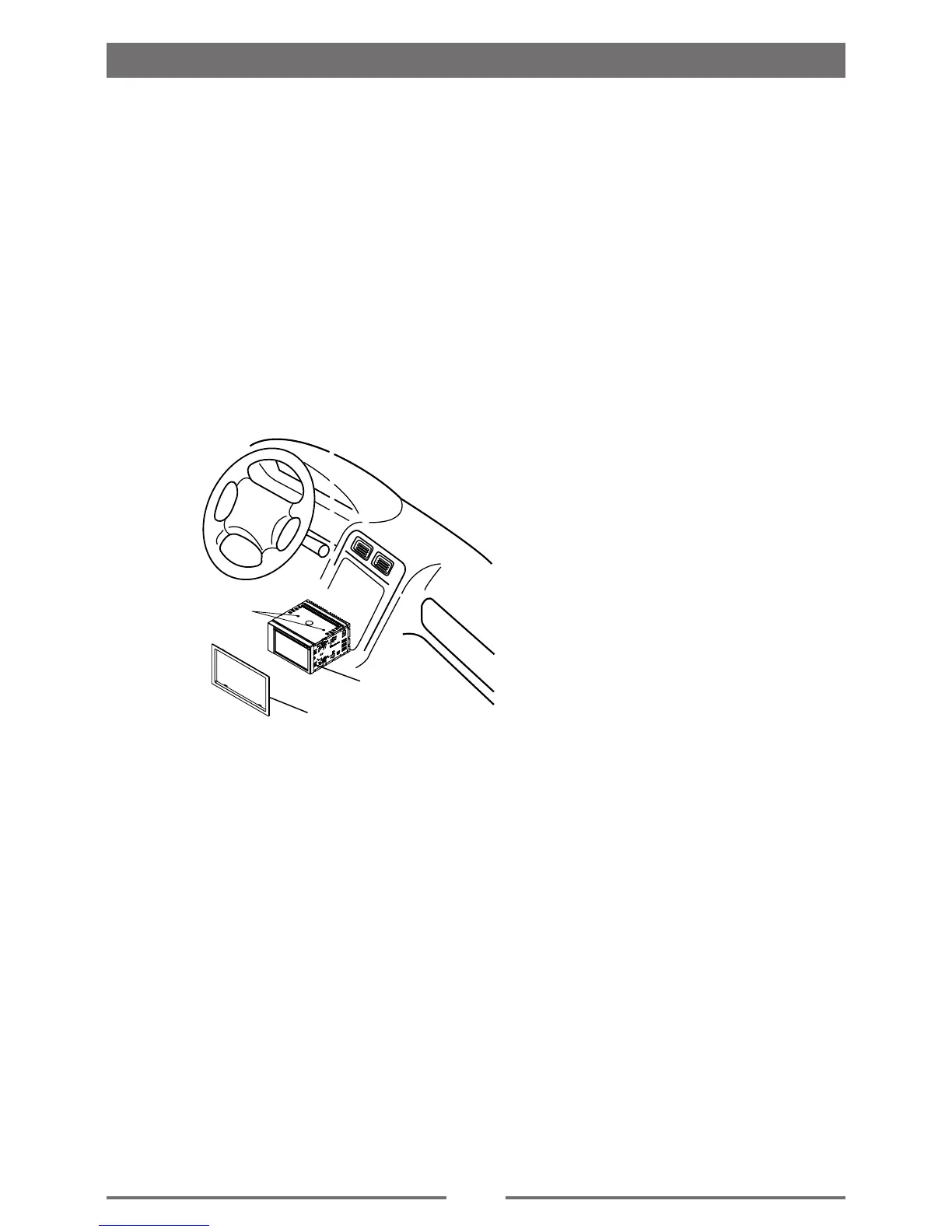

Main unit
Trim frame
Remove the
two screws
To Next Page
