YOUR MAFI TRAC
EXTERIOR VIEW
30 Operating Manual MT 25 / 30 YT

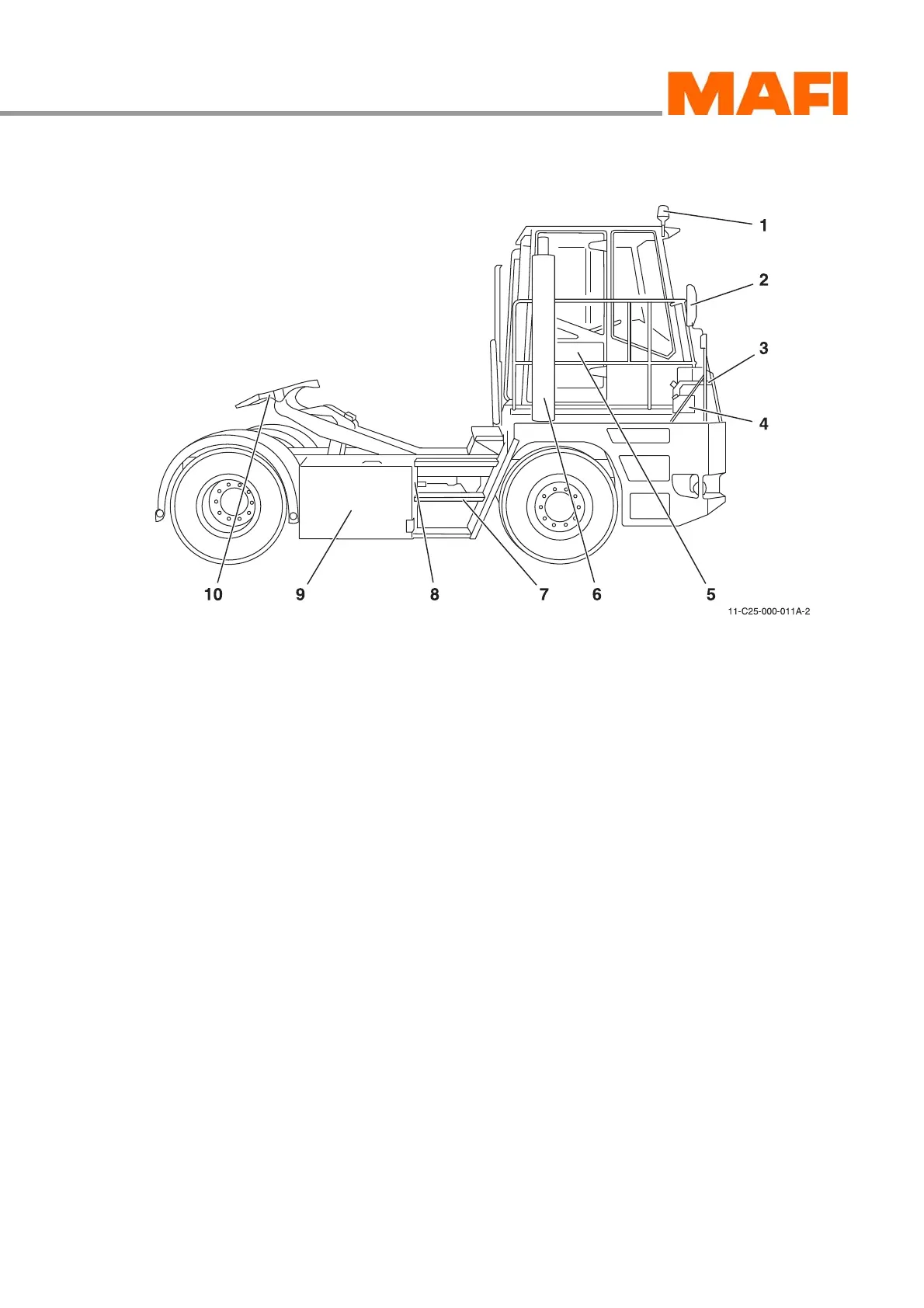

Fig. 7: View right side
1 Warning beacon
2 Exterior rear view mirror
3 Equalising reservoir for motor coolant
4 Windscreen washer tank
5 Cabin door
6 Exhaust
7 Ladder
8 Oil viewing window for hydraulic oil
9 Hydraulic tank/fuel tank
10 Fifth wheel with saddle plate
