YOUR MAFI TRAC
EXTERIOR VIEW
Operating Manual MT 25 / 30 YT 29
Exterior view

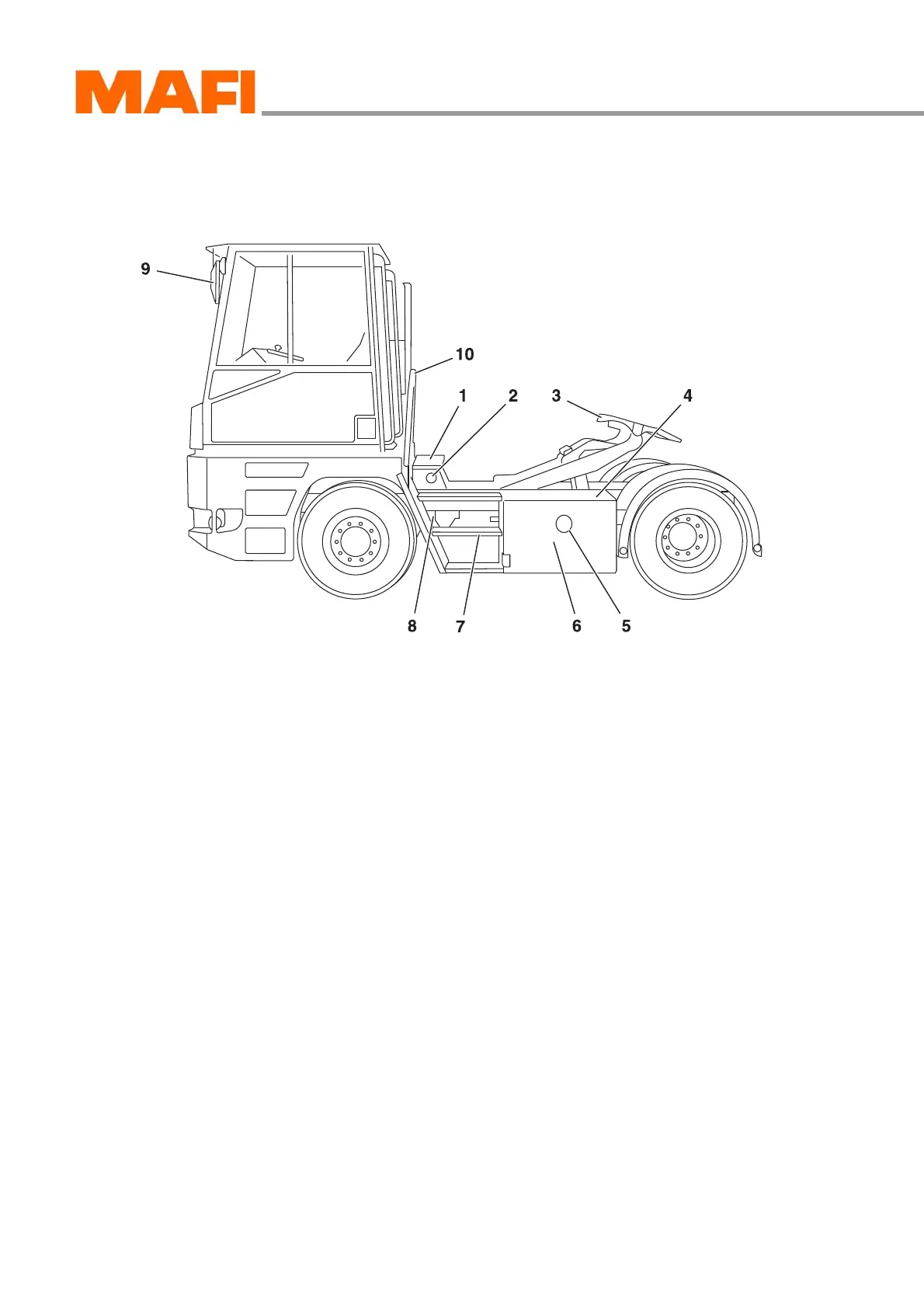

Fig. 6: Side view from driver's side
1 Transmission cover
2 Front sling points
3 Fifth wheel with saddle plate
4 Cover
5 Main battery switch
6 Pneumatics compartment and Battery compartment with main fuses
7 Ladder
8 Hand pump for lifting/lowering the driver's cab
9 Exterior rear view mirror
10 Connection column
