OPERATION
HEATING/VENTILATION/AIR CONDITIONING
50 Operating Manual MT 25 / 30 YT
Air outlet nozzles

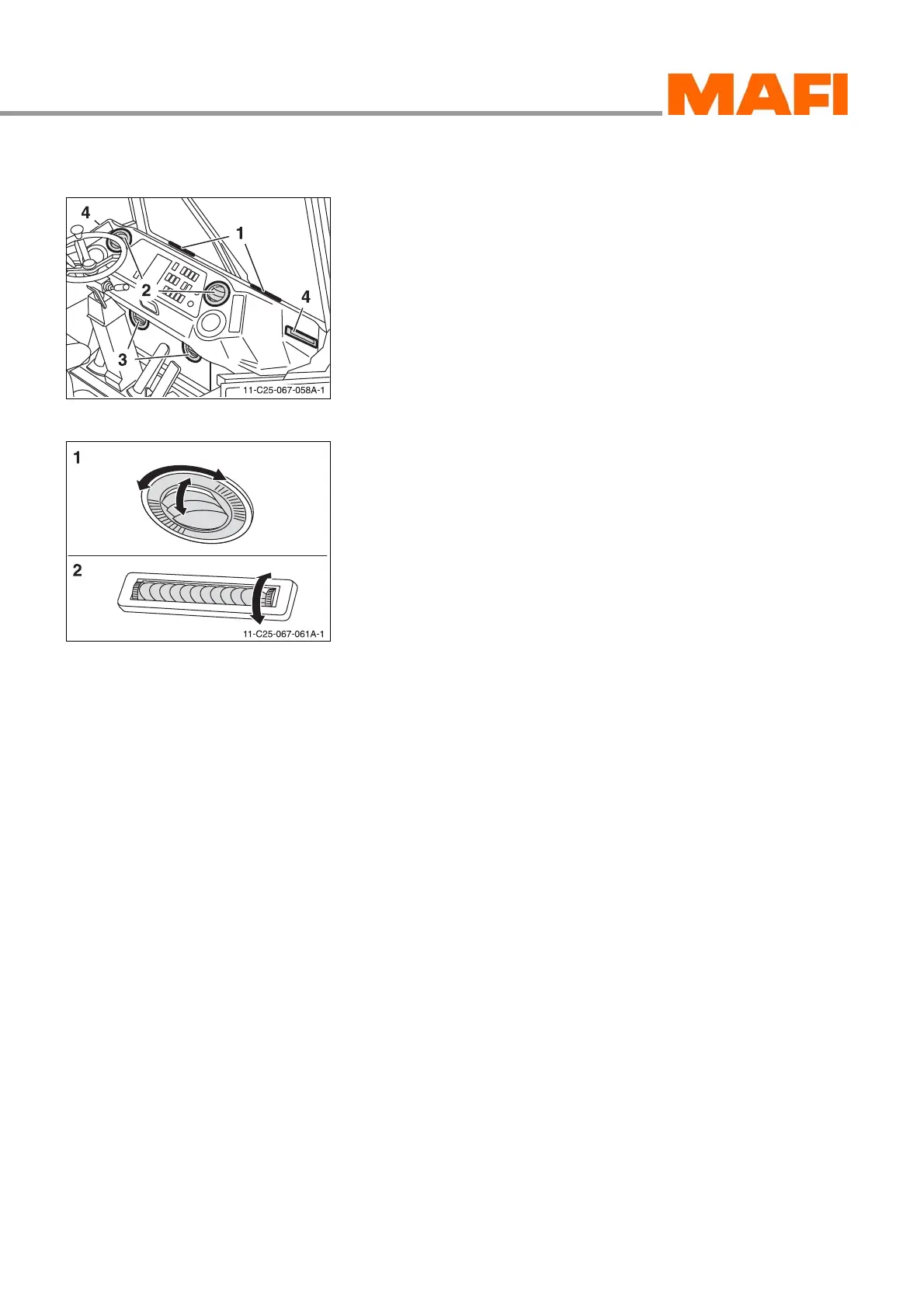

Fig. 30: Air outlet nozzles
1 Front windscreen
2 Driver seat
3 Foot well
4 Side windows
There are several air outlet nozzles in the driver's cab. You can
use these nozzles to defrost the windows and to ventilate the
interior. Some nozzles can be set manually and thus change
the direction of the airflow.
Adjusting the airflow direction
Fig. 31: Adjusting the airflow
1 Main outlet nozzles
2 Drum-type outlet nozzles
X
Swivel the outlet nozzles or the fins of the drum-type outlet
nozzles in the desired direction.
Notes on the optimal setting
z To defrost the windows keep the main outlet nozzles
closed.
z To heat the cabin keep the drum-type outlet nozzles
closed.
z For air conditioning set the air flow of the main outlet
nozzles upwards.
