CONTROL ELEMENTS
Instrument panel
72 Operating manual MT 32 / 36

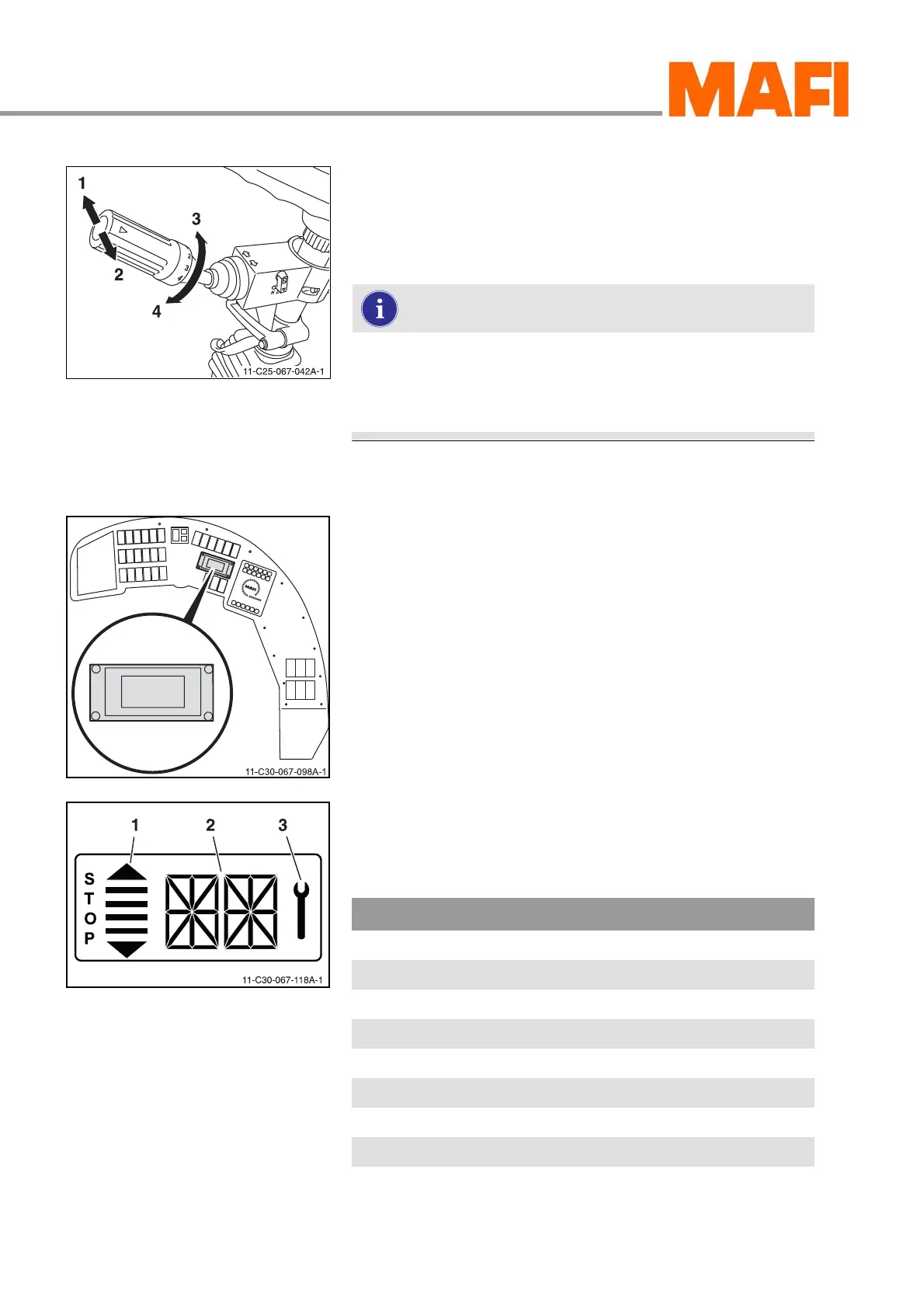

Fig. 60: Operation
1 “Forwards” driving direction
2 “Reverse” driving direction
3 Higher driving program
4 Lower driving program
You cannot select a drive program when the swivel seat
is not latched properly, the gear stick is locked in neu-
tral position or the parking brake has not been
released.
Transmission display
Fig. 61: Transmission display
The transmission display contains the following information:
z Selected driving direction: forwards/backwards,
z Selected driving program: 1 to 4 (D),
z Current driving gear,
z Error messages and error codes when malfunctions occur.
Fig. 62: Transmission display
1 Bar display
2 Alphanumeric display
3 Spanner
Display Explanation Remark
1 F 1st forward gear
2 F 2nd forward gear
3 F 3rd forward gear
4 F 4th forward gear
5 F 5th forward gear
6 F 6th forward gear
1 R 1st reverse gear
2 R 2nd reverse gear
3 R 3rd reverse gear
Table 1: Display messages during driving mode
