Mag One BPR 40 - Radio Disassembly and Reassembly; Detailed Radio Disassembly

2-6 Radio Disassembly – Detailed
6.0 Radio Disassembly – Detailed
6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.
2. Unlatch the battery latch at the bottom of the radio (see “Figure 2-1”). Remove the battery by
gently lifting the hilt of the battery, nearest to the battery latch,
away from the housing.
3. Slide the battery downwards to remove the battery.
4. Remove the antenna by unscrewing it (see “Figure 2-2”).
5. Pull the On/Off Volume and Channel knobs out of their shafts using the Chassis Opener (see
“Figure 2-2”).

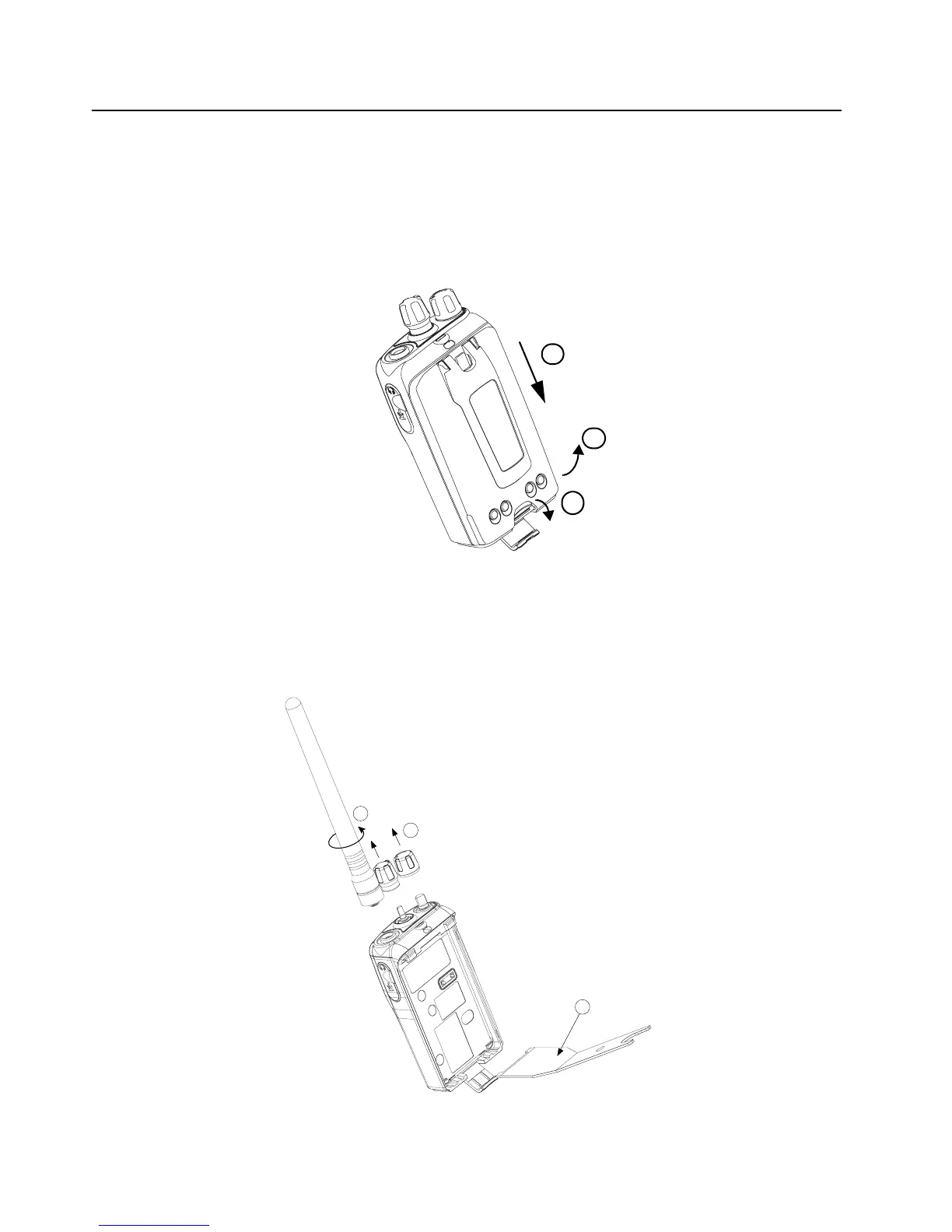

Figure 2-1
Figure 2-2
2a
2a3
2b
6
4
5
