2-10 Radio Reassembly – Detailed
7.2 Chassis and Front Cover Reassembly
1. Place the speaker felt onto the grille area (see “Figure 2-8”) .
2. Place the speaker on top of the felt.
3. Stick the speaker poron pad onto the back of speaker magnet.
4. Place the speaker bracket and screw the bracket to the housing.
5. Slot the battery latch shaft into the latch (see “Figure 2-9”).
6. Place the latch onto the housing, with the shaft protruding on the right side of the latch (see
“Figure 2-10”).
NOTE
Proceed to perform steps 1, 2, 3 and 4 only if there is a need to replace the speaker,
speaker bracket or speaker felt.

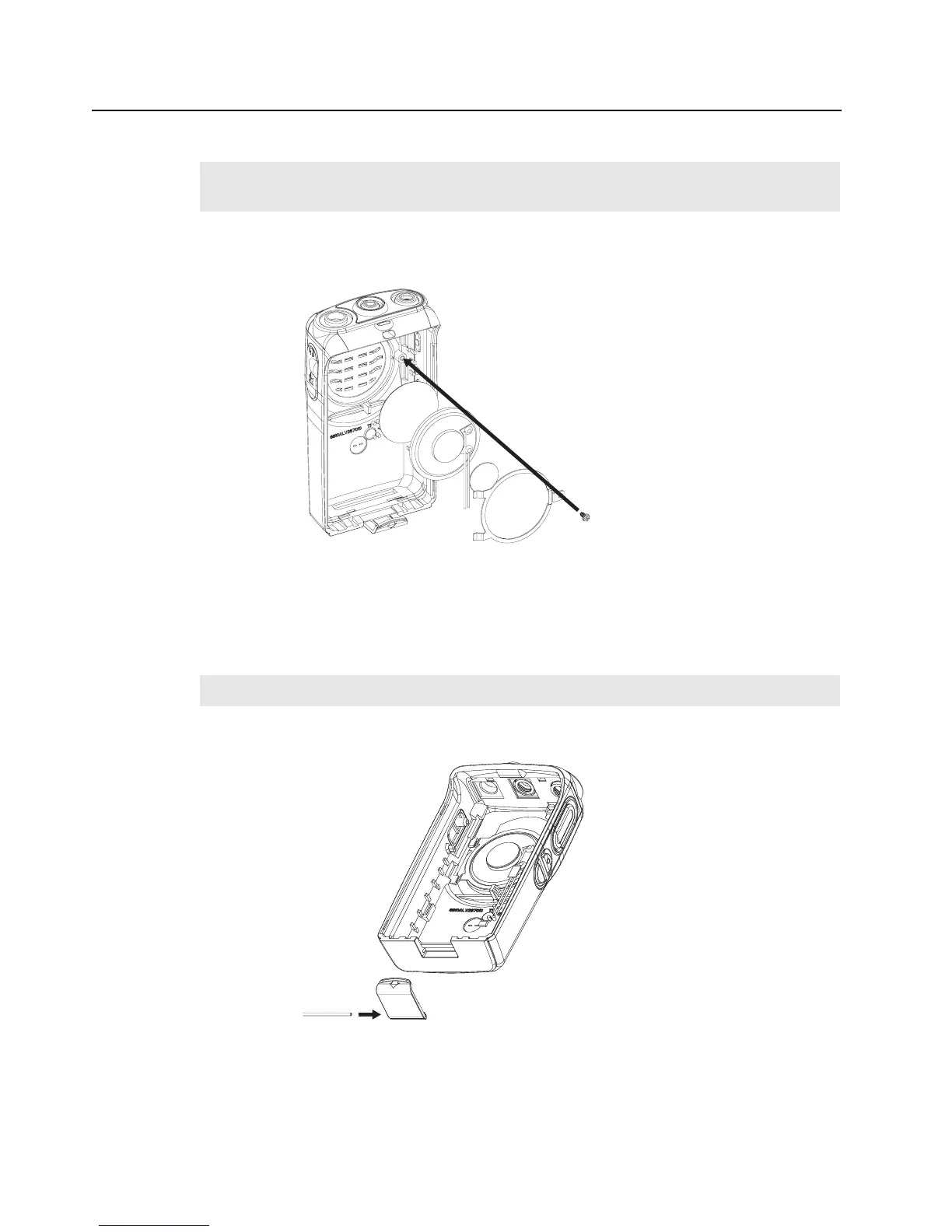

Figure 2-8
NOTE
Proceed to perform steps 5, 6, 7 and 8 only if there is a need to replace the latch.
Figure 2-9
