Mag One BPR 40 - Page 31

Radio Reassembly – Detailed 2-11

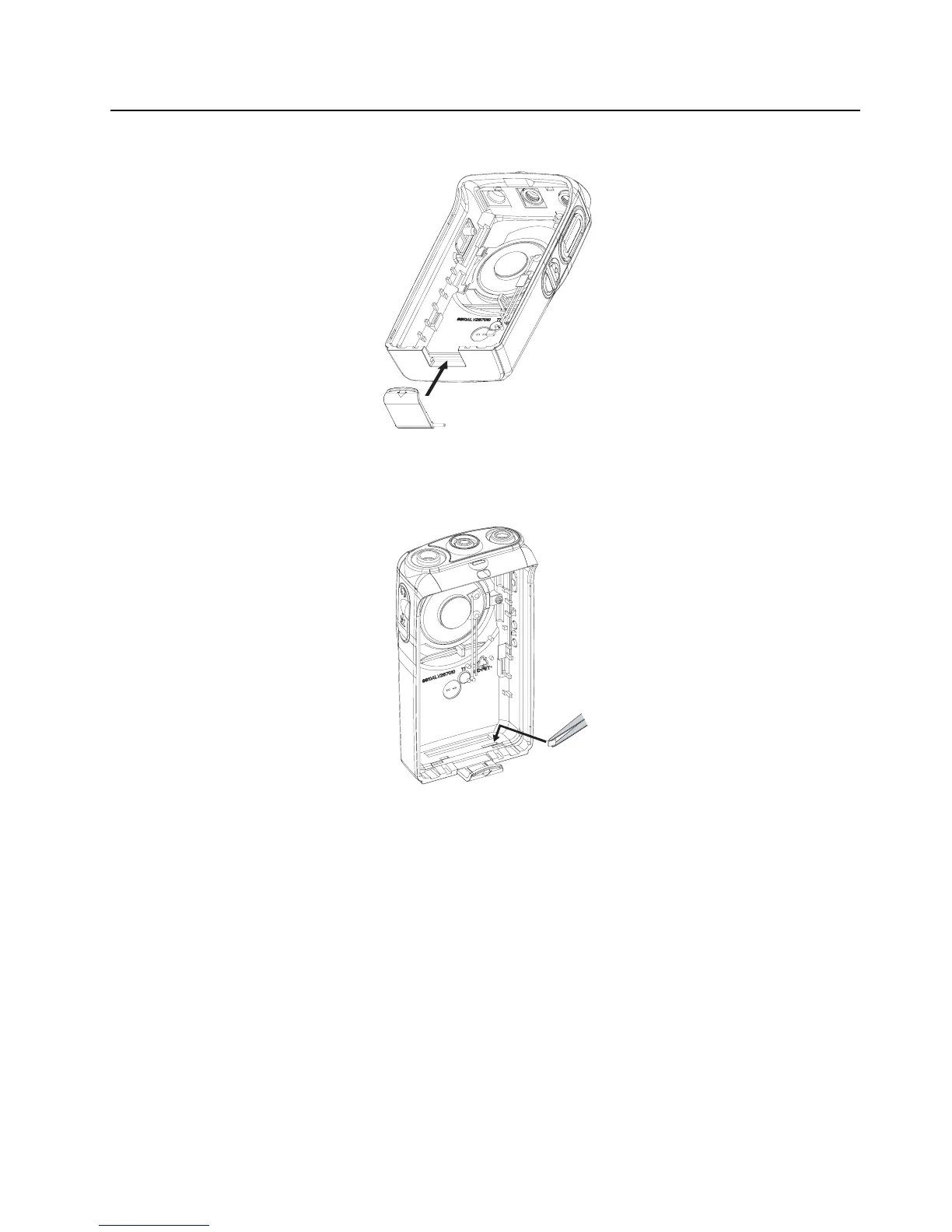

7. With the battery latch placed on the housing, push the shaft in the housing slot to the left (see
“Figure 2-11”).
8. Place the small latch pad onto the right slot space (see “Figure 2-11”).
Figure 2-10
Figure 2-11
