2-12 Radio Reassembly – Detailed
9. Connect the internal speaker connector to the PC board (“see “Figure 2-12”).
10. Place the diecast into the front housing (see “Figure 2-13”).
11. Snap the front housing cover firmly into place on the rear diecast .
12. Attach the battery.
13. Attach the On/Off Volume Knob, Channel Knob and Antenna.

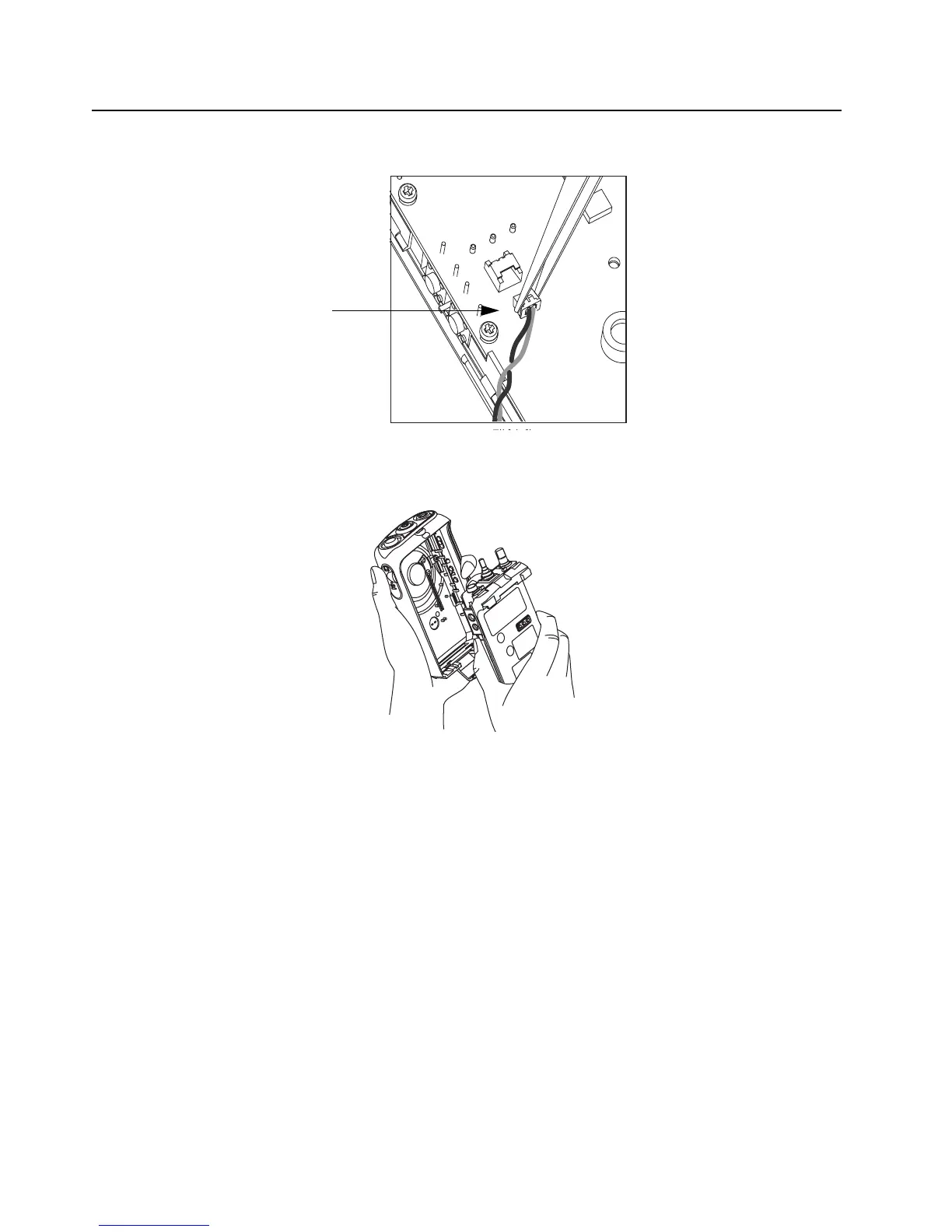

Figure 2-12
Figure 2-13
Speaker
Connector
To Next Page
