- Tap . Bluetooth Manager starts searching for any
Bluetooth device present in the vicinity. At the end of the
search sequence, a MobileMapper Beacon icon should be
present in the list of found devices.
- Double-tap the MobileMapper Beacon icon. The screen
lists the only service available from MobileMapper Beacon
which is its Serial Port service.
- Double-tap the Serial Port service icon. A dialog box opens
prompting you to associate MobileMapper CX’s COM4 with
MobileMapper Beacon.
- Just tap OK. A message box appears confirming that a link
is now established with MobileMapper Beacon via Port
COM4 on MobileMapper CX. On MobileMapper Beacon,
the blue indicator light is on.
- Tap OK.
- Tap to minimize the Bluetooth window.
- Tap again to close the Settings window.
- Then go to point 3. below.
2. If you are using COM1 on MobileMapper CX to communi-
cate with MobileMapper Beacon (RS232 wire connection):
- Attach the I/O module to MobileMapper CX.

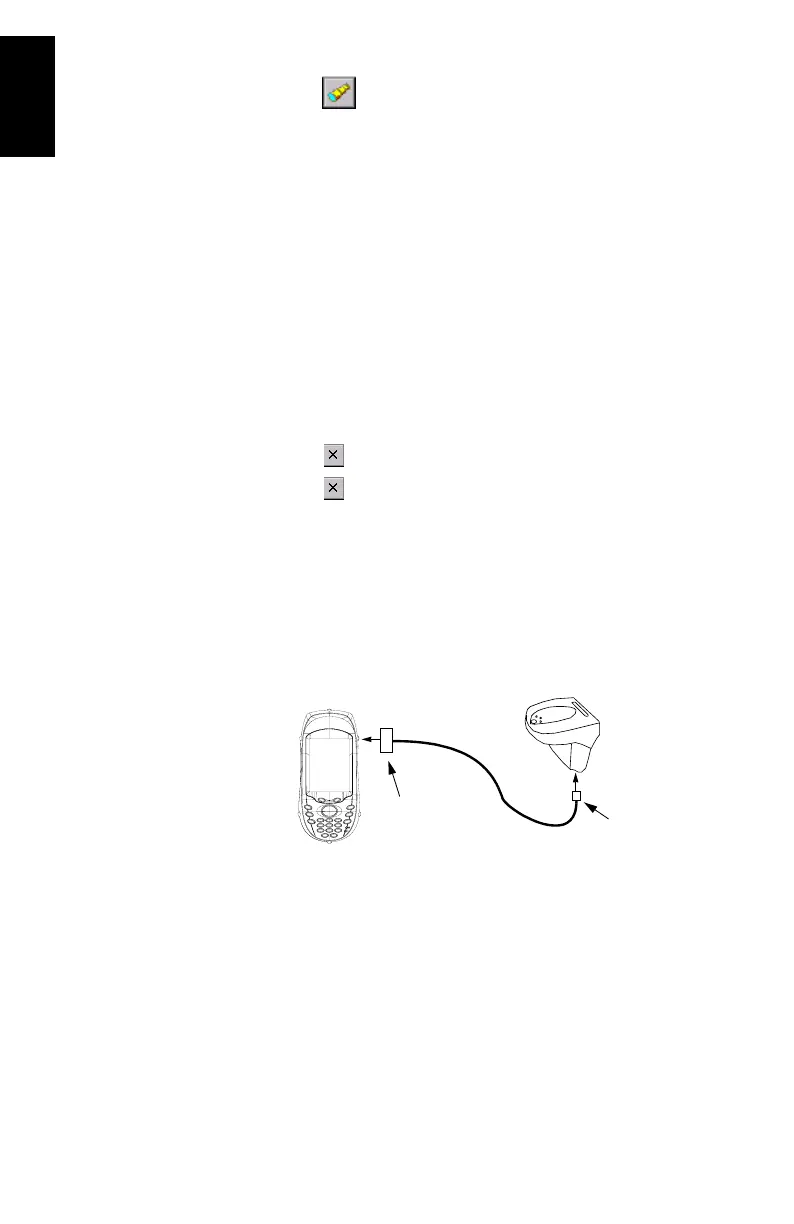

- Connect the serial cable provided with MobileMapper Bea-
con between the two units. See diagram below.
- Switch on both MobileMapper Beacon and MobileMapper
CX.
COM1 on I/O module
Data Connector
DB9-female
Round 7-pin connector
